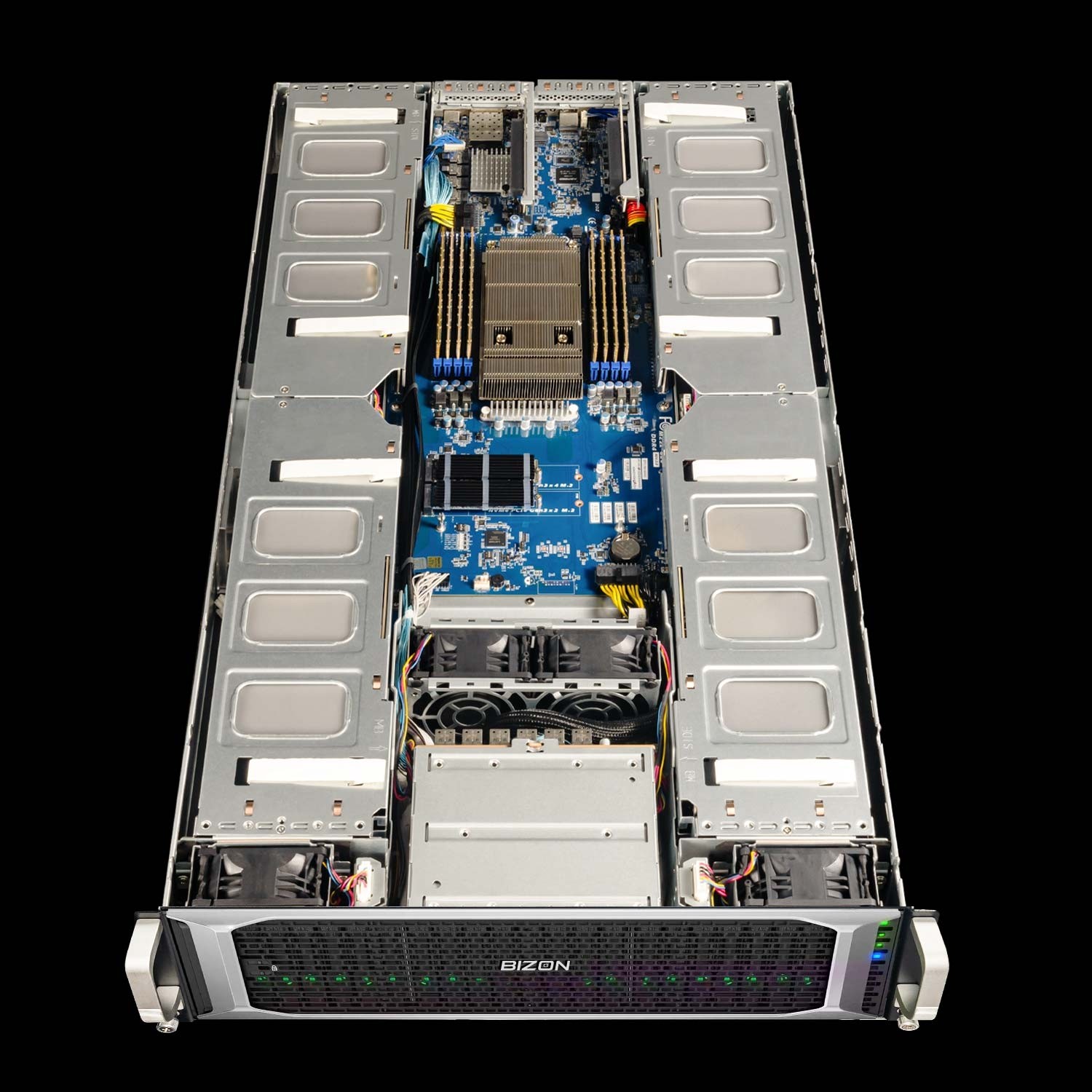

BIZON G8000 G2 – 2U Single CPU Intel Xeon up to 64 cores, 4 GPUs

Use cases

• • Artificial Intelligence
• • Big Data Analytics
• • High-performance Computing
• • Research Lab/National Lab
• • Astrophysics, Business Intelligence

Motherboard

• • Intel Xeon Scalable Processors LGA 4677 (Socket E).
• • Intel C741 chipset.

CPU

• • 4th/5th Generation Intel Xeon Scalable Processors
• • Intel Xeon CPU Max Series
• • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• • Dual processors, 10nm
• • Up to 64-core, 128 threads per processor
• • cTDP up to 350W

Memory

• • Up to 4096 GB DDR5 ECC Buffered
• • 16 x DIMM slots
• • DDR5 memory supported only
• • 8-Channel memory per processor architecture
• • RDIMM modules up to 64GB supported
• • 3DS RDIMM modules up to 256GB supported

Expansion Slots

• • 4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards (rear)
• • 2 x PCIe x16 slots (Gen5 x16 link, FH, HL) (rear)
• • 1 x PCIe x8 slot (Gen4 x8 link, LP, HL) (front)

Storage

• • 2 x 2.5" & 4 x 3.5" Hot-swap Storage Bays:- 2 x 2.5" SATA/SAS/NVMe- 2 x 3.5" SATA/SAS/NVMe- 2 x 3.5" SATA/SAS
• • 1 x M.2 socket (Gen3 x4 link PCIe mode, up to 2280)

LAN

• • 2 x 1 Gigabit LAN ports (Intel I350 Controller)
• • 1 x 10/100/1000 management LAN (Dedicated IPMI)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
• • 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb Server(600W) (4 DP), Nvidia L40s 48Gb (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 94Gb NVL (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Front I/O

• • 4 x USB 3.2 Gen 1 ports
• • 1 x Power Button w/LED
• • 1 x Location Button w/LED
• • 1 x Message LED
• • 1 x Q-Code/Port 80 LED
• • 2 x LAN LED

Rear I/O

• • 2 x USB 3.2 Gen1 ports
• • 2 x RJ45
• • 1 x MLAN
• • 1 x VGA
• • 1 x Power Button w/LED
• • 1 x Location LED
• • 1 x Message LED

Power Supply

• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Requirements

100-120V (standard US outlet):If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need two (2) 20 A /120V outlets with a dedicated circuit.Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power.Actual power consumption depends on your configuration (graphics card and CPU).Power consumption example:G8000 with 4 x RTX 6000 Ada + 2 x Xeon 4514Y CPUs = 2400-2600W (100% load for all the GPUs and CPUs).Power supplies efficiency:1200W @ 110-120V2200W @ 220-240VInformation for reference only. Consult your electrician for more details.The system power supply is universal and will work worldwide. Compatible with 110v - 240v (50-60 Hz).

System Management

• • Remote access from anywhere (SSH/VNC)
• • Virtual machines
• • GPU sharing
• • Containers
• • One-click software updates
• • Jupyter notebooks
• • GPU/System monitoring
• • accounts, and permissions

OS Compatibility

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Microsoft Windows Server 2022 Standard (optional).
• • No operating system (optional).
• • Microsoft Windows Server 2019.
• • Microsoft Windows Server 2022.
• • Red Hat Enterprise Linux 9.x (x64) or later
• • Ubuntu 20.04 LTS (x64) or later
• • Ubuntu 22.04 LTS (x64) or later
• • VMware ESXi 8.0
• • CentOS 7.8

Operating Properties

• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating humidity: 8%-80% (non-condensing)
• • Non-operating temperature: -40° to 158° F (-40°C to 70°C)
• • Non-operating humidity: 20%-90% (non-condensing)

Noise

• 4 x NVIDIA RTX 6000 Ada: Idle: 71 dBMax Load (stress test): 91 dB

Dimensions & Weight

• Case: Rackmountable; 2U; horizontal placement, Height: 3.5 inches (8.89 cm), Width: 17.3 inches (44.0 cm), Depth: 31.5 inches (80.0 cm)
• Shipping Package: Height: 10.2 inches (26.1 cm), Width: 28.3 inches (72.4 cm), Length: 44.5 inches (113.3 cm), Weight: 135 lbs (61.2 kg) (shipped on pallet)

In the Box

• • Bizon G8000 G2
• • 1 x Rail kit
• • 2 x power cords (USA)
• • User manual
• • Benchmark report

Part Number

bizon-g8000-g2
