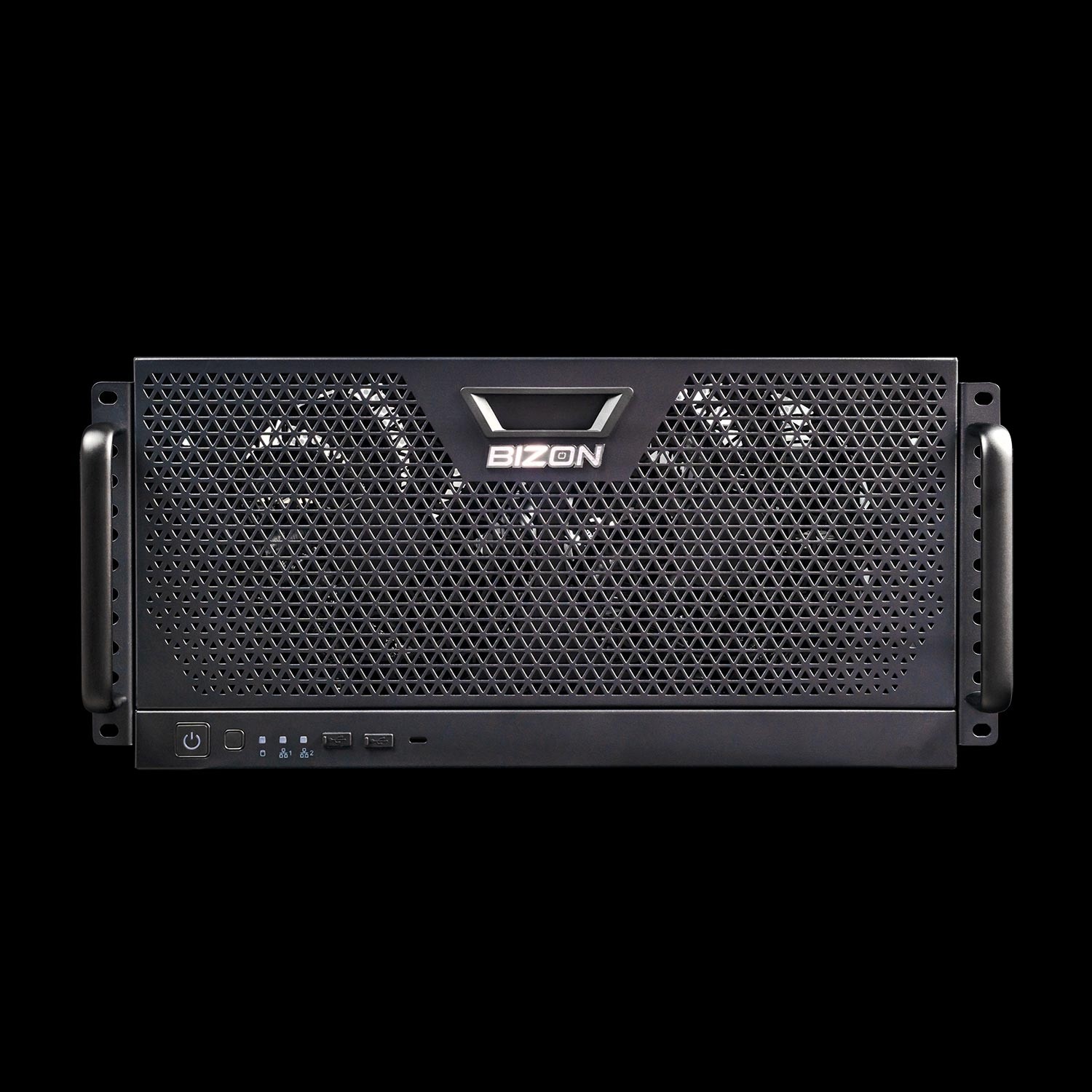

BIZON R3000 – Intel Xeon W Rackmount AI Workstation PC

Ports

• Front panel: 2x USB 3.0, Mic, Headphone, Reset, Power button
• Rear panel: 3 x USB 3.2 Gen2 Type-A, 1 x USB3.2 Gen2x2 Type-C, 1 x VGA, 1 x COM, 2 x RJ45, 1 x RJ45 IPMI_dedicated, 1 x ID button with LED, 3 x Audio jacks

Motherboard

• • Supports 4th Gen Intel Xeon W-3500 and W-2500 Processors (LGA4677).
• • 7 x PCI-E slots.
• • Supports 8x SATA HDD/SSD, 2x NVMe SSD
• • Intel W790 Chipset.

CPU

4th Gen Intel Xeon W-3500 series with up to 60 Cores or Intel Xeon W-2500 series with up to 22 Cores

RAM

• • Up to 1024 GB DDR5 ECC Buffered
• • 8 RAM slots.
• • Quad Channel DDR5 Memory Technology.

Expansion Slots

• • 5 x PCIe 5.0 x16 Slots (Slot_7, Slot_6, Slot_5, Slot_4 ,Slot_2 at x16)
• • 2 x PCIe 4.0 x16 Slots (Slot_3, Slot_1 at x16)
• • 2 x PCI-Express M.2
• • 2 x U.2 connectors

Storage

• • 2 x M.2 slots: M-key, PCIe Gen4 x4, Supports NGFF-2280 cards
• • 8 x SATA 6Gb/s (SlimSAS type)
• • Supports RAID 0, RAID 1, RAID 5 and RAID 10

Graphics Cards

• Available options: Nvidia RTX 5060 Ti 8 Gb (3 DP, HDMI), Nvidia RTX 5070 12 Gb (3 DP, HDMI), Nvidia RTX 5070 Ti 16 Gb (3 DP, HDMI), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb (600W) (4 DP)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

7.1 Realtek ALC897 Audio Codec

Onboard LAN

• • 2 x 10GbE LAN ports (Intel X710-AT2)
• • 1 x 10/100/1000 Management LAN (Realtek RTL8211FD)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)

Wireless

• Wi-Fi: 802.11ac Wi-Fi Module, Supports Wi-Fi 802.11a/b/g/n/ac, Supports MU-MIMO
• Bluetooth: Bluetooth 5.1 + High speed class II

Case

• Rackmount 5U:

Cooling System

• • CPU Liquid Cooling
• • Front: 2 x 140mm fans
• • Rear: 140mm fan

Power Supply

• 1 GPU-Ready for 1x RTX 5090/40xx:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 2 GPU-Ready for 2x RTX 5090/40xx or 2x RTX 6000 Ada/Blackwell:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 4 GPU-Ready for 4x RTX 6000 Ada, RTX PRO 6000 Max-Q:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Consumption

2 x NVIDIA RTX 5090:Idle: 200WMax Load (stress test): 1200W-1600W

Noise level and temperature

• • Idle noise level: up to 43 dB
• • Idle temperature (GPUs): Average 44 C / 111 F (min 42 C - max 44 C)
• • Max load noise level (stress test): up to 57 dB
• • Max load temperature (GPUs): Average 86 C / 186.8 F (min 84 C - max 88 C)

Dimensions & Weight

• Case (Rackmount 5U): Height: 8.7 inches (22.0 cm), Width: 17.3 inches (44.0 cm), Depth: 20.9 inches (53.0 cm)
• Shipping Package: Height: 9.5 inches (24.5 cm), Width: 20.5 inches (52.4 cm), Length: 23.2 inches (59.4 cm), Weight: 58 lbs (26.5 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon R3000.
• • 1/2 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-r3000-0924
