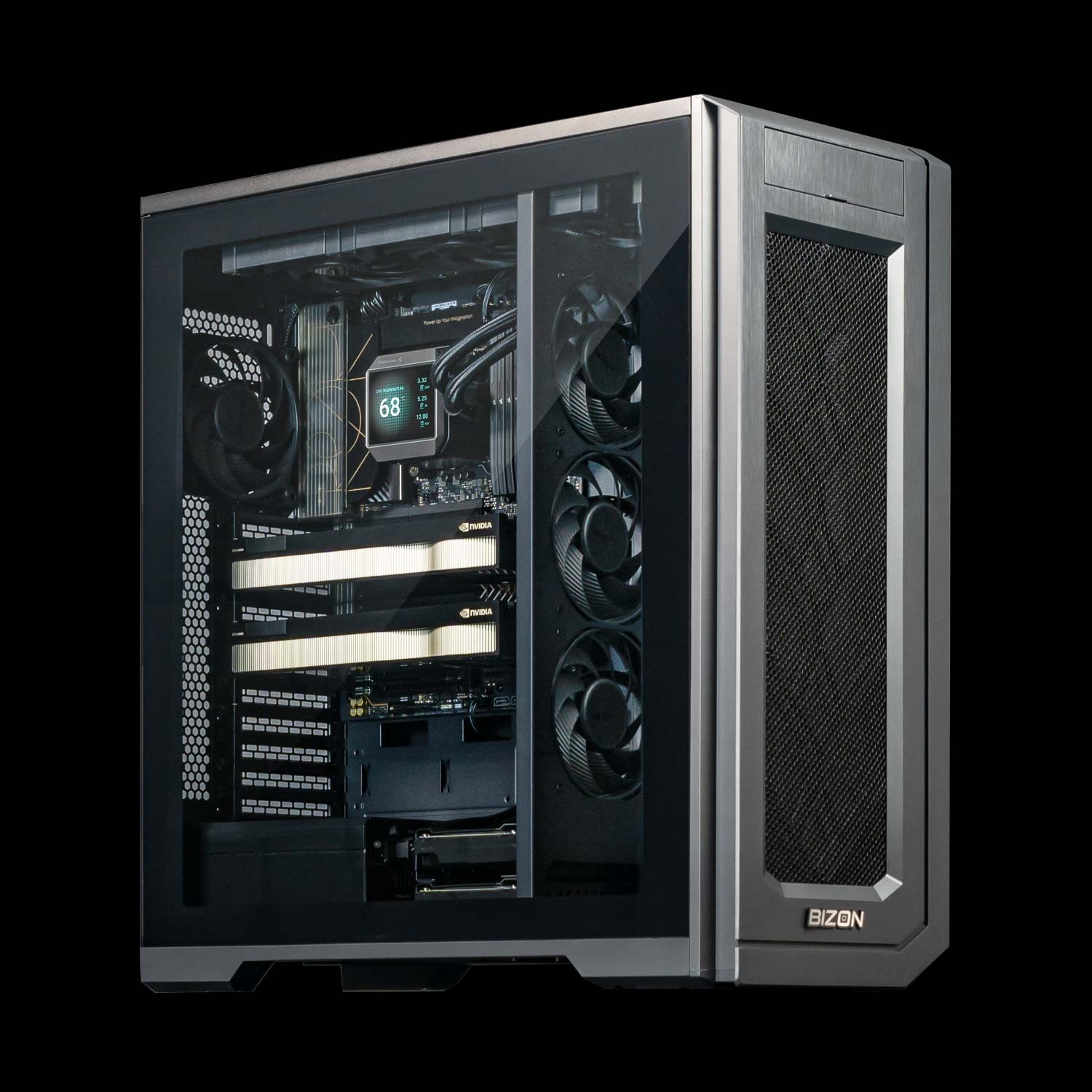

Bizon V3000 G4 – Intel Core Ultra 9 285K GPU AI, Deep Learning Workstation PC

Ports

• Front panel: 2x USB 3.0, 1x USB 3.1 Type-C, Mic, Headphone, Power button
• Rear panel: 2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*, 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, 5 x Audio jacks

Motherboard

• • Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM)
• • 3 x PCI-E slots.
• • Intel Z890 chipset.

CPU

Intel Core Ultra processor with 14, 20, or 24 Cores

RAM

• • Up to 192 GB DDR5 5200 MHz
• • 4 RAM slots.
• • Dual Channel.

Expansion Slots

• • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode (CPU)
• • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode (Chipset)
• • 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode (Chipset)

Storage

• • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode (CPU)
• • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (CPU)
• • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes (Chipset)
• • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode (Chipset)
• • 4 x SATA3 6.0 Gb/s Connectors (Chipset)
• • Support Raid 0, 1, 5, 10

Graphics Cards

• 1 GPU-Ready: 1 x Nvidia RTX graphics card.
• 2 GPU-Ready: Up to 2 Nvidia RTX graphics cards.
• Available options: Nvidia RTX 5060 Ti 8 Gb (3 DP, HDMI), Nvidia RTX 5070 12 Gb (3 DP, HDMI), Nvidia RTX 5070 Ti 16 Gb (3 DP, HDMI), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb (600W) (4 DP)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Onboard LAN

• • 1 x 2.5Gb Ethernet (Killer E3100G)
• • 10 Gigabit Dual Port Ethernet (2x RJ45) (optional)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)

Wireless

• Wi-Fi: 802.11be 2x2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz frequency band, Supports 320MHz channel bandwidth with 6GHz frequency band, Supports MU-MIMO
• Bluetooth: Bluetooth 5.4

Case

• • 4x 3.5in
• • 11x 2.5in

Cooling System

• Full Custom Built Water Cooling system including cooling for CPU and GPUs (optional): 240mm + 360mm Radiators, Water pump, Reservoir, CPU water block, GPU water blocks (optional)

Power Supply

• 1 GPU-Ready for 1x RTX 5070:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 1 GPU-Ready for 1x RTX 5090/40xx:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 2 GPU-Ready for 2x RTX 5090/40xx:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Noise level and temperature

• • Idle noise level: up to 43 dB
• • Idle temperature (GPUs): Average 44 C / 111 F (min 42 C - max 44 C)
• • Max load noise level (stress test): up to 55 dB
• • Max load temperature (GPUs): Average 86 C / 186.8 F (min 84 C - max 88 C)

Dimensions & Weight

• Case: Height: 22.8 inches (58.0 cm), Width: 9.5 inches (24.0 cm), Depth: 22.0 inches (56.0 cm)
• Shipping Package: Height: 25.6 inches (65.0 cm), Width: 13.0 inches (33.0 cm), Length: 26.2 inches (66.5 cm), Weight: 53 lbs (24.5 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon V3000 G4.
• • Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-v3000-g4-1024
