Complete Technical Specifications
Ports
Front panel:
2x USB 3.0, 1 x USB 3.1 GEN 2 Type-C, Mic, Headphone, Power button
Rear panel:
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)
- 4 x USB 3.2 Gen1 Type-A Ports
- 6 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
Motherboard
AMD AM5 Socket Ryzen 9000 Series processors support.
2 x PCI-E 4.0 slots.
AMD X870 chipset.
CPU
AMD Ryzen 9000 processor with up to 16 Cores
RAM
Up to 256 GB DDR5 5200 MHz
4 RAM slots.
Dual Channel.
Expansion Slots
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode (from CPU)
1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode (from chipset)
3 x PCI-Express M.2
Storage
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode (from CPU)
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode (from chipset)
1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes (from chipset)
2 x SATA3 6.0 Gb/s Connectors (from chipset)
2 x SATA3 6.0 Gb/s Connectors (from ASMedia ASM1061)
Graphics Cards
Available options:
- Nvidia RTX 5060 Ti 8 Gb (3 DP, HDMI)
- Nvidia RTX 5070 12 Gb (3 DP, HDMI)
- Nvidia RTX 5070 Ti 16 Gb (3 DP, HDMI)
- Nvidia RTX 5080 16 Gb (3 DP, HDMI)
- Nvidia RTX 5090 32 Gb (3 DP, HDMI)
- Nvidia RTX 6000 Ada 48Gb (4 DP)
- Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP)
- Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP)
- Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP)
- Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP)
- Nvidia RTX PRO 6000 Blackwell 96Gb (600W) (4 DP)
Display Support (all cards):
Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4
Onboard Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Onboard LAN
1 x 2.5 Gigabit LAN (Dragon RTL8125BG)
10 Gigabit Dual Port Ethernet (2x RJ45) (optional)
25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
Wireless
Wi-Fi:
- 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz frequency band
- Supports 160MHz channel bandwidth with 6GHz frequency band
- Supports MU-MIMO
Bluetooth:
- Bluetooth 5.4
Case
Case #1 (High-End Case with anodized aluminum panels and tempered glass side panel.):
Case #2 (Rackmount 5U):
Cooling System
Full Custom Built Water Cooling system including cooling for CPU and GPUs (optional):
- 240mm + 360mm Radiators
- Water pump
- Reservoir
- CPU water block
- GPU water blocks (optional)
Power Supply
1 GPU-Ready for 1x RTX 5070:
Power cord requirements:
C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
1 GPU-Ready for 1x RTX 5090/40xx:
Power cord requirements:
C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
2 GPU-Ready for 2x RTX 5090/40xx:
Power cord requirements:
C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
Noise level and temperature
Idle noise level: up to 43 dB
Idle temperature (GPUs): Average 44 C / 111 F (min 42 C - max 44 C)
Max load noise level (stress test): up to 55 dB
Max load temperature (GPUs): Average 86 C / 186.8 F (min 84 C - max 88 C)
Dimensions & Weight
Case #1:
- Height: 22.8 inches (58.0 cm)
- Width: 9.5 inches (24.0 cm)
- Depth: 22.0 inches (56.0 cm)
Shipping Package:
- Height: 25.6 inches (65.0 cm)
- Width: 13.0 inches (33.0 cm)
- Length: 26.2 inches (66.5 cm)
- Weight: 53 lbs (24.5 kg)
Case #2 (Rackmount 5U):
- Height: 8.7 inches (22.0 cm)
- Width: 17.3 inches (44.0 cm)
- Depth: 20.9 inches (53.0 cm)
Shipping Package:
- Height: 9.5 inches (24.5 cm)
- Width: 20.5 inches (52.4 cm)
- Length: 23.2 inches (59.4 cm)
- Weight: 58 lbs (26.5 kg)
Electrical and Operating Requirements
Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Operating temperature: 50° to 95° F (10° to 35° C)
Operating Relative Humidity: 8% to 90% (non-condensing)
In the Box

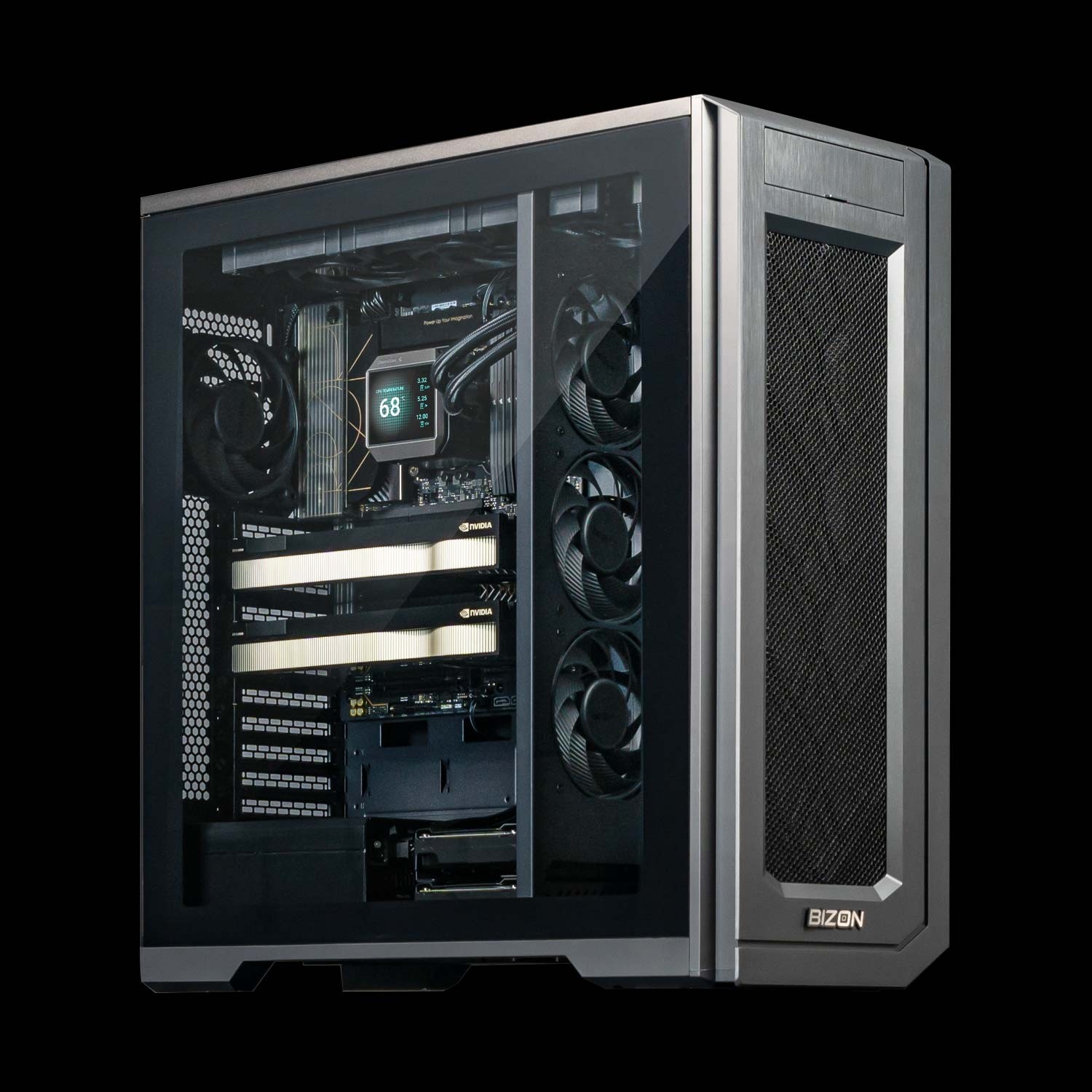

Bizon X3000 G2.
1/2 Power cord (USA).
User manual.
Benchmark report.
Operating System
BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
Rocky Linux 9 (optional).
Windows 11 Pro (optional).
No operating system (optional).
Part Number
bizon-x3000-g2-0423
