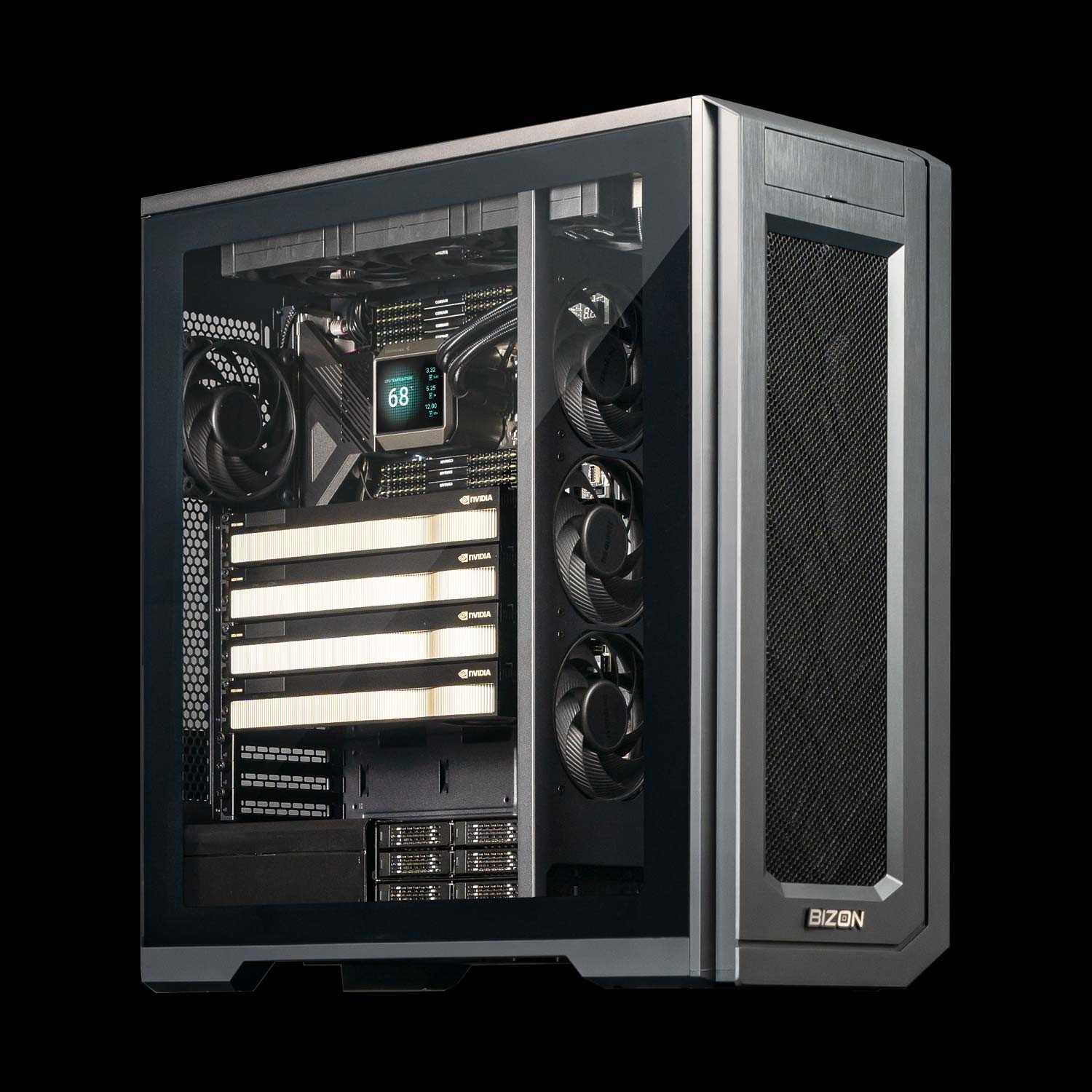

BIZON X4000 – AMD Threadripper 7960X 7970X 7980X Processors AI Workstation Computer

Ports

• Front panel: 2x USB 3.0, 1 x USB 3.1 GEN 2 Type-C, Mic, Headphone, Reset, Power button
• Rear panel: 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort In port, 1 x USB4 USB Type-C port (DisplayPort), 1 x USB4 USB Type-C port, 4 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 2 x RJ-45 ports, 2 x audio jacks

Motherboard

• Gigabyte TRX50 Aero D: AMD RYZEN Threadripper support., 3 x PCI-E 5.0 slots., Supports 8x SATA HDD/SSD and 4x M.2 SSD, AMD TRX50 chipset.

CPU

AMD RYZEN Threadripper processor with 24, 32, or 64 Cores

RAM

• • Up to 512 GB DDR5 ECC
• • 4 x DDR5 DIMM Slots.
• • Quad Channel DDR5 Memory Technology.

Expansion Slots

• • 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
• • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

Storage

• CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
• Chipset: 8 x SATA 6Gb/s connectors

Graphics Cards

• Available options: Nvidia RTX 5060 Ti 8 Gb (3 DP, HDMI), Nvidia RTX 5070 12 Gb (3 DP, HDMI), Nvidia RTX 5070 Ti 16 Gb (3 DP, HDMI), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb (600W) (4 DP)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

2-channel HD Audio Realtek ALC4080 CODEC (rear panel audio)Realtek ALC897 CODEC (front panel audio)

Onboard LAN

• • 1 x 10 Gigabit LAN (Marvell AQC113C)
• • 1 x 2.5 Gigabit LAN (Realtek 2.5GbE LAN chip)
• • 10 Gigabit Dual Port Ethernet (2x RJ45) (optional)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)

Wireless

• Wi-Fi: Qualcomm Wi-Fi 7 QCNCM865, 802.11a, b, g, n, ac, ax, be, Support for 11be 320MHz wireless standard
• Bluetooth: Bluetooth 5.3

Case

• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 3.5in, 11x 2.5in

Cooling System

• Full Custom Built Water Cooling system including cooling for CPU and GPUs (optional): 360mm Radiator, Water pump, Reservoir, CPU water block, GPU water blocks (optional)

Power Supply

• 1 GPU-Ready for 1x RTX 5070:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 1 GPU-Ready for 1x RTX 5090/40xx:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 2 GPU-Ready for 2x RTX 5090/40xx or 2x RTX 6000 Ada/Blackwell:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 4 GPU-Ready for 4x RTX 6000 Ada, RTX PRO 6000 Max-Q:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Noise level and temperature

• • Idle noise level: up to 43 dB
• • Idle temperature (GPUs): Average 44 C / 111 F (min 42 C - max 44 C)
• • Max load noise level (stress test): up to 55 dB
• • Max load temperature (GPUs): Average 86 C / 186.8 F (min 84 C - max 88 C)

Dimensions & Weight

• Case: Height: 22.8 inches (58.0 cm), Width: 9.5 inches (24.0 cm), Depth: 22.0 inches (56.0 cm)
• Shipping Package: Height: 25.6 inches (65.0 cm), Width: 13.0 inches (33.0 cm), Length: 26.2 inches (66.5 cm), Weight: 53 lbs (24.5 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon X4000 G4.
• • 1/2 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-x4000-g4-0124

Ports

• Front panel: 2x USB 3.0, 1 x USB 3.1 GEN 2 Type-C, Mic, Headphone, Reset, Power button
• Rear panel: 2 x Antenna Ports, 1 x D-Sub Port, 1 x Optical SPDIF Out Port, 2 x USB 4.0 Thunderbolt 4 Type-C Ports, 2 x Mini DisplayPort Input Ports (For Thunderbolt), 4 x USB 3.2 Gen2 Ports (10 Gb/s), 2 x USB 3.2 Gen1 Ports, 2 x RJ-45 LAN Ports, 1 x RJ45 Dedicated IPMI LAN Port, 1 x Clear CMOS Button, 5 x Audio Jacks

Motherboard

• ASRock WRX80 Creator: AMD RYZEN Threadripper Pro support., 7 x PCI-E 4.0 slots., Supports 8x SATA HDD/SSD and 2x M.2 SSD, AMD WRX80 chipset.
• ASUS Pro WS WRX80E-SAGE SE:
• Supermicro MBD-M12SWA-TF-O: Note: motherboard model may vary between those three options listed above.Contact sales if you have a specific preference.

CPU

AMD RYZEN Threadripper Pro processor with 16, 24, 32, or 64 Cores

RAM

• • Up to 1024 GB DDR4 3200 MHz ECC
• • 8 RAM slots.
• • 8 channels memory architecture (1 DIMM per channel).

Expansion Slots

• • 7 x PCI Express 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8)
• • 2 x PCI-Express M.2

Storage

• CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 8 x SATA3 6.0 Gb/s Connectors, 1 x U.2 Connector

Graphics Cards

• Available options: Nvidia RTX 4060 8 Gb (3 DP, HDMI), Nvidia RTX 4070 12 Gb (3 DP, HDMI), Nvidia RTX 4070 Ti 12 Gb (3 DP, HDMI), Nvidia RTX 4080 16 Gb (3 DP, HDMI), Nvidia RTX 4090 24 Gb (3 DP, HDMI), Nvidia RTX T1000 Gb (4 DP), Nvidia RTX A4000 16Gb (4 DP), Nvidia RTX A4500 20Gb (4 DP), Nvidia RTX A5000 24Gb (4 DP), Nvidia RTX A5500 24Gb (4 DP), Nvidia RTX A6000 48Gb (4 DP), Nvidia RTX 4000 Ada 20Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

7.1 CH HD Audio (Realtek ALC4050H+ALC1220)

Onboard LAN

• • 2 x 10 Gigabit LAN
• • 1 x Dedicated IPMI

Wireless

• Wi-Fi: 802.11ax Wi-Fi 6E Module, Supports Wi-Fi 802.11a/b/g/n/ax, Supports Dual-Band 2x2 160MHz, Supports MU-MIMO
• Bluetooth: Bluetooth + High speed class II

Case

• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 3.5in, 11x 2.5in

Cooling System

• Full Custom Built Water Cooling system including cooling for CPU and GPUs (optional): 360mm Radiator, Water pump, Reservoir, CPU water block, GPU water blocks (optional)

Power Supply

• 1 GPU-Ready for 1x RTX 30xx:
• 1 GPU-Ready for 1x RTX 4090/4080:
• 2 GPU-Ready for 2x RTX 4090/4080: Note: The system power supply requires C19 type power cord (included).C19 Connector and C20 Inlet.
• 4 GPU-Ready for 4x A6000:

Dimensions & Weight

• Case: Height: 22.8 inches (58.0 cm), Width: 9.5 inches (24.0 cm), Depth: 22.0 inches (56.0 cm)
• Shipping Package: Height: 25.6 inches (65.0 cm), Width: 13.0 inches (33.0 cm), Length: 26.2 inches (66.5 cm), Weight: 53 lbs (24.5 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon X4000 G3.
• • Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 22.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Windows 10 Pro (optional).

Part Number

bizon-x4000-g3-0423
