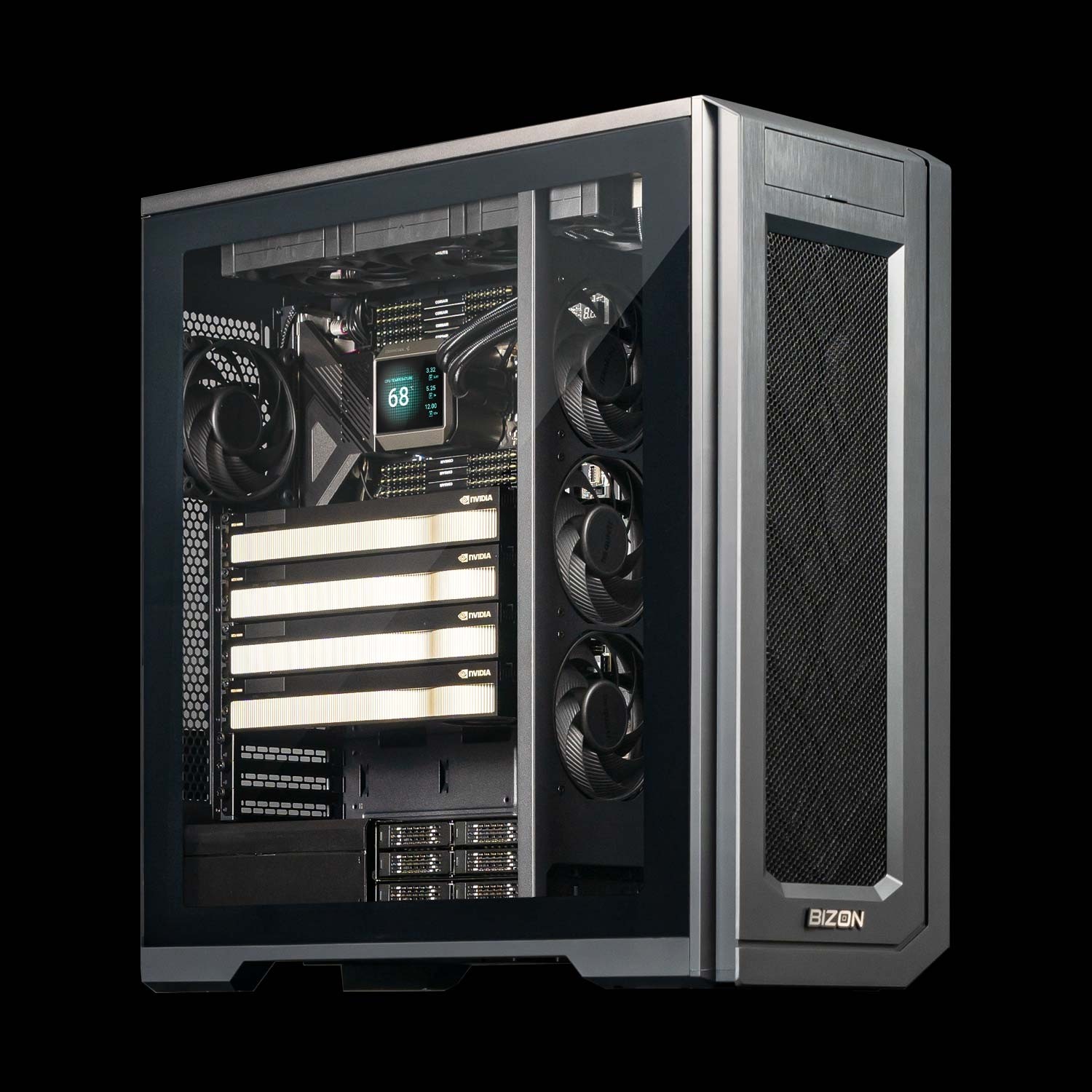

BIZON X5500 G2 – AI Deep Learning & Data science Workstation PC, NVIDIA – AMD Threadripper Pro

Ports

• Front panel: 2x USB 3.0, 1 x USB 3.1 GEN 2 Type-C, Mic, Headphone, Reset, Power button
• Rear panel: 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort In port, 1 x USB4 USB Type-C port (DisplayPort), 1 x USB4 USB Type-C port, 6 x USB 3.2 Gen 2 Type-A ports (red), 2 x RJ-45 port, 2 x audio jacks

Motherboard

• GIGABYTE TRX50 AI TOP: AMD RYZEN Threadripper PRO support., 4 x PCI-E 5.0 slots., Supports 4x SATA HDD/SSD and 4x M.2 SSD, AMD TRX50 chipset.

CPU

AMD RYZEN Threadripper Pro processor with 16, 24, 32, 64 or 96 Cores

RAM

• • Up to 1024 GB DDR5 ECC
• • 8 x DDR5 DIMM Slots.
• • Eight Channel DDR5 Memory Technology.

Expansion Slots

• GIGABYTE TRX50 AI TOP: 4 x PCIe 5.0 x16 slots (PCIEX16_1/2/3/4)
• Gigabyte TRX50 Aero D (4x DIMMs configuration): 2 x PCIe 5.0 x16 slots (PCIEX16_1/PCIEX16_2), 1 x PCIe 4.0 x16 slots (PCIEX16_3)

Storage

• • 4 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU/M2D_CPU), supporting Socket 3, M key, type 2280, PCIe 5.0 x4/x2 SSDs
• • 4 x SATA3 6.0 Gb/s Connectors
• • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• • RAID 0 and RAID 1 support for SATA storage devices

Graphics Cards

• 1/2 GPU-Ready: Up to 2 x 40xx/50xx-Series NVIDIA
• 4 GPU-Ready: Up to 4 x NVIDIA RTX A-Series
• Available options: Nvidia RTX 5060 Ti 8 Gb (3 DP, HDMI), Nvidia RTX 5070 12 Gb (3 DP, HDMI), Nvidia RTX 5070 Ti 16 Gb (3 DP, HDMI), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb (600W) (4 DP)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

• • 2-channel Realtek ALC4080 CODEC (rear panel audio)
• • Realtek ALC897 CODEC (front panel audio)

Onboard LAN

• • 2 x 10GbE LAN (Marvell AQtion AQC113C)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)

Wireless

• Wi-Fi: Qualcomm Wi-Fi 7 QCNCM865, Supports IEEE 802.11a/b/g/n/ac/ax/be, Supports 2.4/5/6 GHz carrier frequency bands, Support for 11be 320MHz wireless standard
• Bluetooth: Bluetooth 5.3

Case

• High-End Case with anodized aluminum panels and tempered glass side panel.:

Cooling System

• • CPU Liquid Cooling
• • Front: 2 x 140mm fans
• • Rear: 140mm fan

Power Supply

• 1 GPU-Ready for 1x RTX 5090/4090:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 2 GPU-Ready for 2x RTX 5090/4090:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 4 GPU-Ready for 4x A6000:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Consumption

2 x NVIDIA RTX 5090: Idle: 200W Max Load (stress test): 1000W-1200W

Noise level and temperature

• • Idle noise level: up to 43 dB
• • Idle temperature (GPUs): Average 44 C / 111 F (min 42 C - max 44 C)
• • Max load noise level (stress test): up to 55 dB
• • Max load temperature (GPUs): Average 86 C / 186.8 F (min 84 C - max 88 C)

Dimensions & Weight

• Case: Height: 22.8 inches (58.0 cm), Width: 9.5 inches (24.0 cm), Depth: 22.0 inches (56.0 cm)
• Shipping Package: Height: 25.6 inches (65.0 cm), Width: 13.0 inches (33.0 cm), Length: 26.2 inches (66.5 cm), Weight: 53 lbs (24.5 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon X5500.
• • 1/2x Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-x5500-0825
