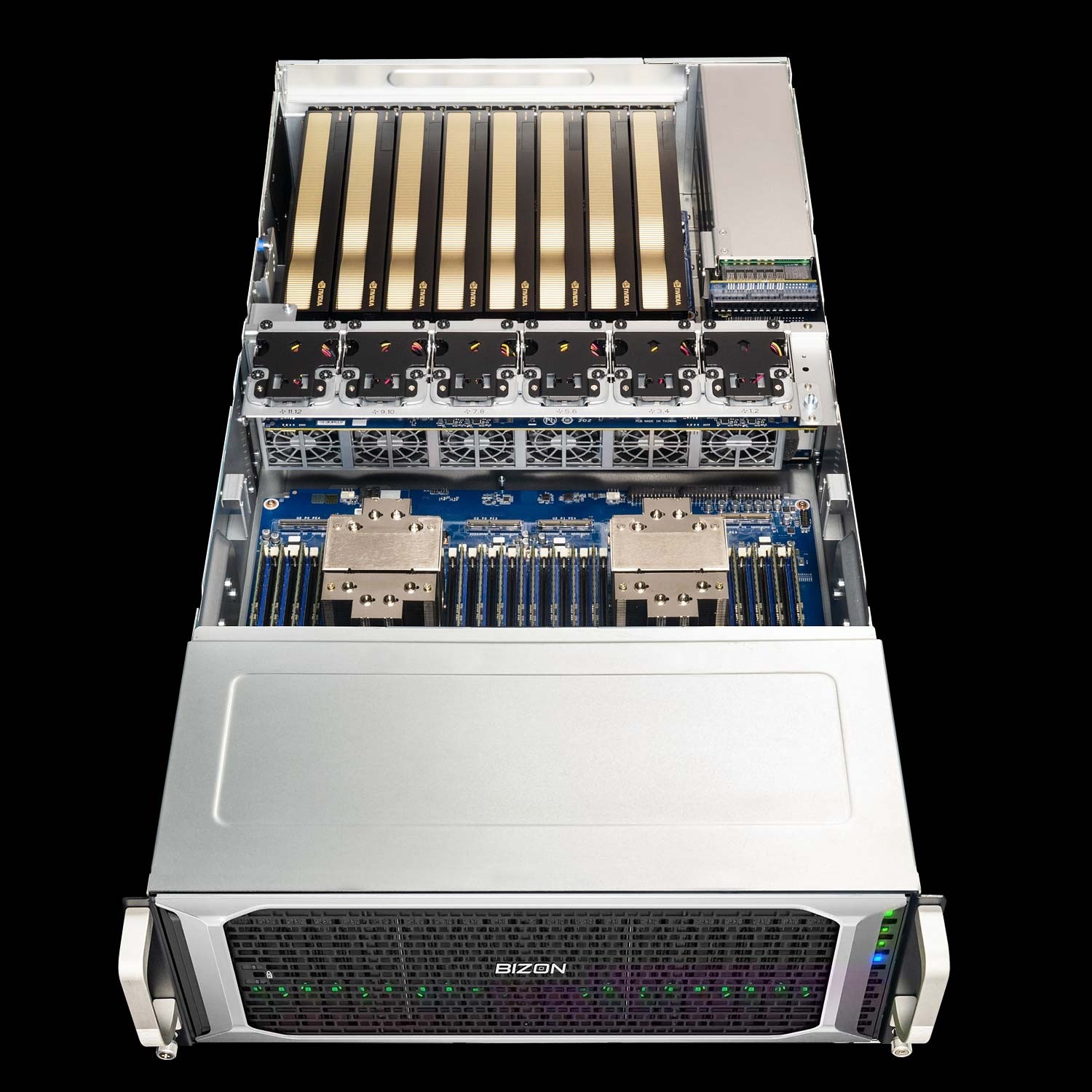

BIZON X7000 G3 – Dual AMD EPYC Deep Learning AI Training Inference GPU Server – Up to 8 GPUs, Dual AMD EPYC Up to 384 Cores CPU
by
Complete Technical Specifications
Use cases
Artificial Intelligence
Big Data Analytics
High-performance Computing
Research Lab/National Lab
Astrophysics, Business Intelligence
Motherboard
AMD EPYC 9004/9005 series processors LGA 6096 (Socket SP5).
System on Chip (SoC).
CPU
AMD EPYC 9004/9005 series processor family
Dual processors, 5nm
Up to 192-core, 384 threads per processor
cTDP up to 400W
Memory
Up to 3072 GB DDR5 5600 MHz ECC Buffered
24 x DIMM slots
DDR5 memory supported only
12-Channel memory per processor architecture
RDIMM modules up to 64GB supported
3DS RDIMM modules up to 256GB supported
Expansion Slots
8 x PCIe slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards
1 x PCIe slot (Gen5 x8 link, LP, HL) for HBA/RAID cards (front)
1 x PCIe slot (Gen5 x16 link) for NIC (rear)
1 x PCIe slot (Gen5 x8 link) for NIC (rear)
Storage
Default option:
- 8 x 3.5"/2.5" Front Hot-swap Storage Bays
- 1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)
X7000-600W option:
- 8 x 2.5" Front Hot-swap Storage Bays
- Up 6 NVMe drives based on HBA/Raid card model installed
LAN
Default option:
- 2 x 10GbE LAN ports (Intel X710-AT2)
- 1 x 10/100/1000 management LAN (Dedicated IPMI)
- 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
- 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
- 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
- 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)
X7000-600W option:
- 1 x 10/100/1000 management LAN (Dedicated IPMI)
- 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
- 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
- 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
- 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)
Graphics Cards
Available options:
- Nvidia A1000 8Gb (4 DP) (Dedicated Display Card)
- Nvidia RTX 6000 Ada 48Gb (4 DP)
- Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP)
- Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP)
- Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP)
- Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP)
- Nvidia RTX PRO 6000 Blackwell 96Gb (600W) (4 DP)
- Nvidia L40s 48Gb (4 DP)
- Nvidia A100 80Gb (no video outputs)
- Nvidia H100 94Gb NVL (no video outputs)
- Nvidia H200 141Gb NVL (no video outputs)
Display Support (all cards):
Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4
Front I/O
Default option:
- 2 x USB 3.2 Gen 1
- 1 x VGA
- 1 x Power Button w/LED
- 1 x Location Button w/LED
- 1 x Message LED
- 1 x Q-Code/Port 80 LED
- 1 x Clear CMOS Switch
- 1 x Reset Switch
- 1 x M.2 LED
X7000-600W option:
- 2 x USB 5Gbps ports
- 1 x Mini DisplayPort
- 1 x Debug port
- 1 x Power Button w/LED
- 1 x Location Button w/LED
- 1 x Message LED
- 1 x Q-Code/Port 80 LED
- 1 x Clear CMOS Switch
- 1 x Reset Switch
Rear I/O
Default option:
- 1 x COM port
- 2 x RJ45
- 1 x MLAN
- 1 x Power Button w/LED
- 1 x Location Button w/LED
X7000-600W option:
- 1 x USB 5Gbps ports
- 1 x MLAN
- 1 x Power switch/LED
- 1 x Location switch/LED
- 1 x Message LED
Power Supply
Default option:
- 2+2 2600W 80 PLUS Titanium redundant power supply
- Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
Power cord requirements:
C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
X7000-600W option:
- 3+1 3200W 80 PLUS Titanium redundant power supply
- Rating: 220-240 Vac, 16.0A(x4), 50-60 Hz
Power cord requirements:
C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
Power Requirements
100-120V (standard US outlet):If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need four (4) 20 A /120V outlets with a dedicated circuit.Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power.Actual power consumption depends on your configuration (graphics card and CPU).Power consumption example:X7000 with 8 x Nvidia RTX A6000/6000 Ada + 2 x AMD EPYC 9124 CPUs = 2400-2600W (100% load for all the GPUs and CPUs).Information for reference only. Consult your electrician for more details.The system power supply is universal and will work worldwide. Compatible with 110v - 240v (50-60 Hz).
System Management
Remote access from anywhere (SSH/VNC)
Virtual machines
GPU sharing
Containers
One-click software updates
Jupyter notebooks
GPU/System monitoring
accounts, and permissions
OS Compatibility
BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
Rocky Linux 9 (optional).
Windows 11 Pro (optional).
Microsoft Windows Server 2022 Standard (optional).
No operating system (optional).
Microsoft Windows Server 2019.
Microsoft Windows Server 2022.
Red Hat Enterprise Linux 8.x (x64) or later
Red Hat Enterprise Linux 9.x (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 8.0
Operating Properties
Operating temperature: 50° to 95° F (10° to 35° C)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40° to 140° F (-40°C to 60°C)
Non-operating humidity: 20%-95% (non-condensing)
Noise
8 x NVIDIA RTX 6000 Ada:
Idle: 71 dBMax Load (stress test): 91 dB
Dimensions & Weight
Case #1 (default option):
- Rackmountable; 4U; horizontal placement
- Height: 6.85 inches (17.45 cm)
- Width: 17.3 inches (44.0 cm)
- Depth: 31.5 inches (80.0 cm)
Shipping Package:
- Height: 17.3 inches (44.4 cm)
- Width: 31.5 inches (80.0 cm)
- Length: 47.2 inches (120.0 cm)
- Weight: 135 lbs (61.2 kg) (shipped on pallet)
Case #2 (X7000-600W):
- Rackmountable; 4U; horizontal placement
- Height: 6.89 inches (17.5 cm)
- Width: 17.28 inches (43.95 cm)
- Depth: 31.5 inches (80.0 cm)
Shipping Package:
- Height: 17.3 inches (44.4 cm)
- Width: 31.5 inches (80.0 cm)
- Length: 47.2 inches (120.0 cm)
- Weight: 167.5 lbs (76.2 kg) (shipped on pallet)
In the Box
Bizon X7000 G3
1 x Rail kit
4 x power cords (USA)
User manual
Benchmark report
Part Number
bizon-x7000-1024-g3
