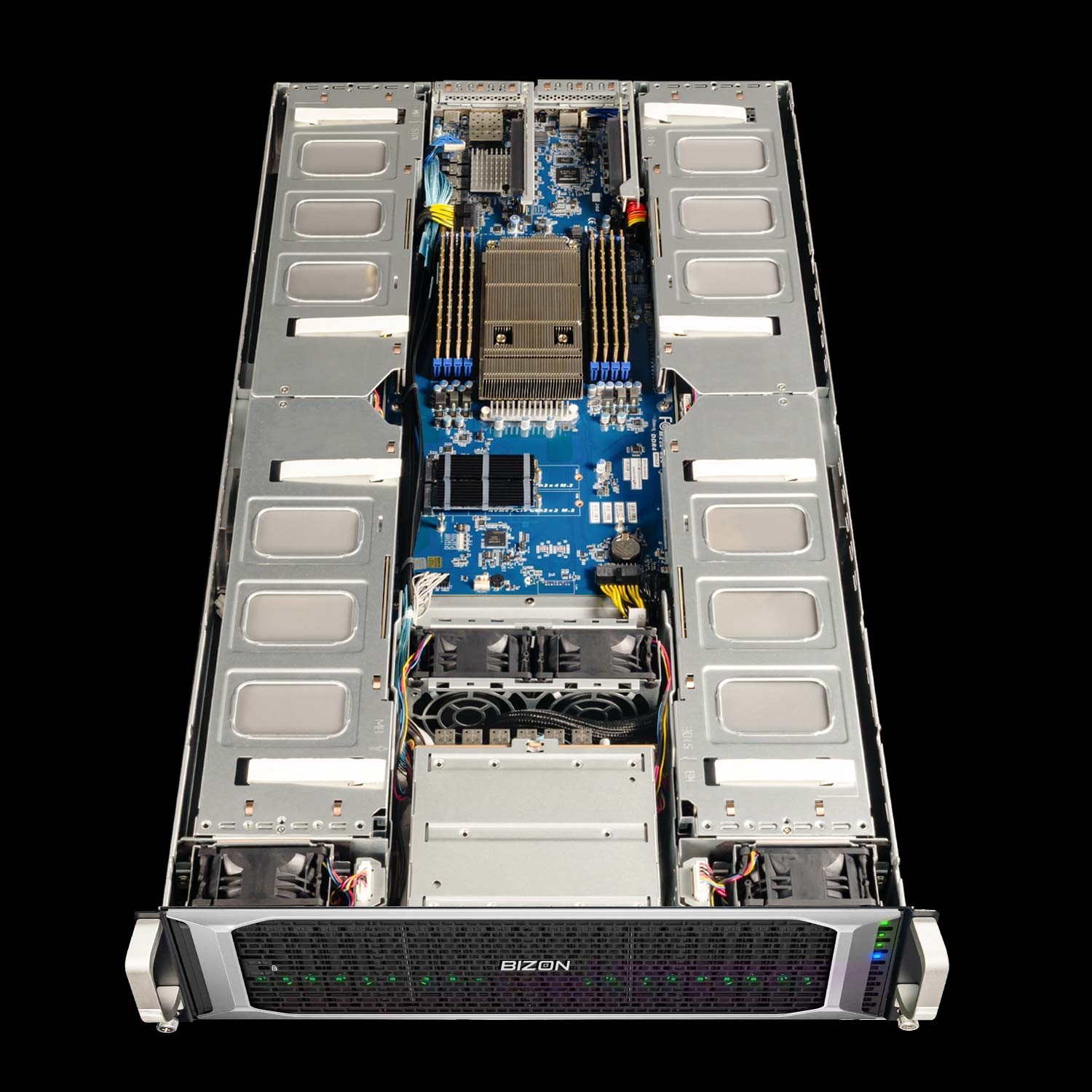

BIZON X8000 G3 – AMD EPYC 9004, 9005 Series CPU – AI Inference NVIDIA – Up to 4 GPU, Up to 192 Cores CPU, 2U

Use cases

• • Artificial Intelligence
• • Big Data Analytics
• • High-performance Computing
• • Research Lab/National Lab
• • Astrophysics, Business Intelligence

Motherboard

• • AMD EPYC 9004/9005 series processors LGA 6096 (Socket SP5).
• • System on Chip (SoC).

CPU

• • AMD EPYC 9004/9005 series processor family
• • 5nm technology
• • Up to 192-core, 384 threads
• • cTDP up to 400W

Memory

• • Up to 1536 GB DDR5 ECC Buffered
• • 12 x DIMM slots
• • DDR5 memory supported only
• • 12-Channel memory architecture
• • RDIMM modules up to 64GB supported

Expansion Slots

• • 4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards (rear)
• • 1 x PCIe x16 slots (Gen5 x16 link, FH, HL) (rear)
• • 1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) (rear)
• • 1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) (rear)
• • 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) (front)

Storage

• • 2 x 2.5" & 4 x 3.5" Hot-swap Storage Bays:-2 x 2.5" SATA/SAS/NVMe-2 x 3.5" SATA/SAS/NVMe-2 x 3.5" SATA/SAS

LAN

• • 2 x 1 Gigabit LAN ports (Intel I350 Controller)
• • 1 x 10/100/1000 management LAN (Dedicated IPMI)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
• • 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP) (Dedicated Display Card), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb Server (600W) (4 DP), Nvidia L40s 48Gb (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 94Gb NVL (no video outputs), Nvidia H200 141Gb NVL (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Front I/O

• • 4 x USB 3.2 Gen 1 ports
• • 1 x Power Button w/LED
• • 1 x Location Button w/LED
• • 1 x Message LED
• • 1 x Q-Code/Port 80 LED
• • 2 x LAN LED

Rear I/O

• • 2 x USB 3.2 Gen1 ports
• • 2 x RJ45
• • 1 x MLAN
• • 1 x VGA
• • 1 x Power Button w/LED
• • 1 x Location LED
• • 1 x Message LED

Power Supply

• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Requirements

100-120V (standard US outlet):If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need two (2) 20 A /120V outlets with a dedicated circuit.Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power.Actual power consumption depends on your configuration (graphics card and CPU).Information for reference only. Consult your electrician for more details.The system power supply is universal and will work worldwide. Compatible with 110v - 240v (50-60 Hz).

System Management

• • Remote access from anywhere (SSH/VNC)
• • Virtual machines
• • GPU sharing
• • Containers
• • One-click software updates
• • Jupyter notebooks
• • GPU/System monitoring
• • accounts, and permissions

OS Compatibility

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Microsoft Windows Server 2022 Standard (optional).
• • No operating system (optional).
• • Microsoft Windows Server 2022.
• • Red Hat Enterprise Linux 9.x (x64) or later
• • Ubuntu 22.04 LTS (x64) or later
• • VMware ESXi 8.0

Operating Properties

• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating humidity: 8%-80% (non-condensing)
• • Non-operating temperature: -40° to 158° F (-40°C to 70°C)
• • Non-operating humidity: 20%-90% (non-condensing)

Noise

• 4 x NVIDIA RTX 6000 Ada: Idle: 71 dBMax Load (stress test): 91 dB

Dimensions & Weight

• Case #1 (default option): Rackmountable; 2U; horizontal placement, Height: 3.5 inches (8.89 cm), Width: 17.3 inches (43.95 cm), Depth: 31.5 inches (80.0 cm)
• Shipping Package: Height: 10.2 inches (26.1 cm), Width: 28.3 inches (72.4 cm), Length: 44.5 inches (113.3 cm), Weight: 135 lbs (61.2 kg) (shipped on pallet)
• Case #2 (optional; by request): Rackmountable; 2U; horizontal placement, Height: 3.44 inches (8.75 cm), Width: 17.3 inches (44.8 cm), Depth: 31.5 inches (80.0 cm)
• Shipping Package: Height: 10.2 inches (26.1 cm), Width: 28.3 inches (72.4 cm), Length: 44.5 inches (113.3 cm), Weight: 135 lbs (61.2 kg) (shipped on pallet)

In the Box

• • Bizon X8000 G3
• • 1 x Rail kit
• • 2 x power cords (USA)
• • User manual
• • Benchmark report

Part Number

bizon-x8000-1024-g3
