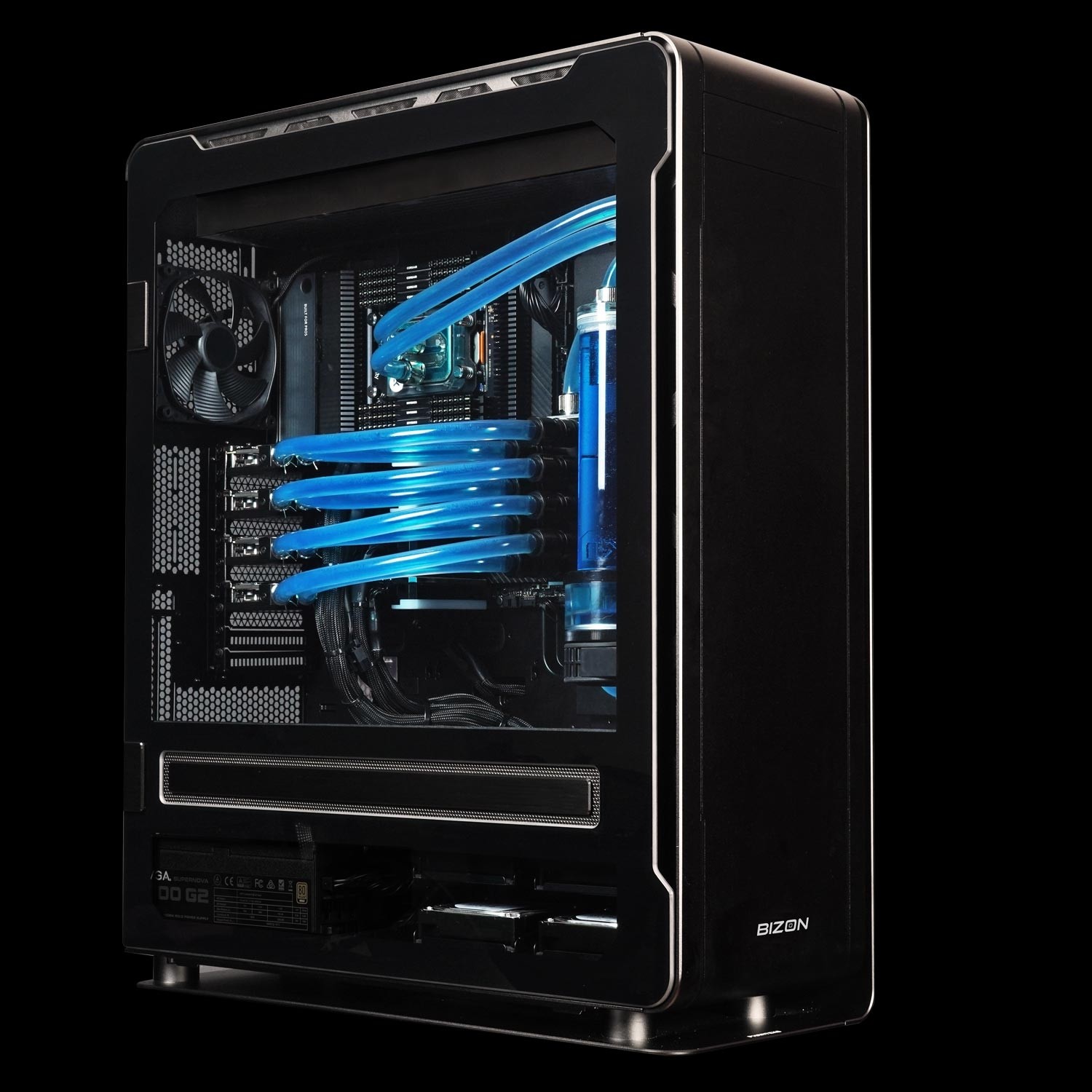

BIZON Z5000 – Water cooled NVIDIA/Deep Learning Workstation PC – Intel Xeon W, up to 60 cores

Ports

• 2/4 GPU-Ready:
• Front panel: 2x USB 3.0, Mic, Headphone, Reset, Power button
• Rear panel: 2 x Antenna Ports, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports, 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 4 x USB 3.2 Gen1 Ports, 3 x RJ-45 LAN Ports, 1 x BIOS Flashback Button, 1 x Line Out Jack, 1 x Microphone Input Jack
• 7 GPU-Ready:
• Front panel: Mic, Headphone, Reset, Power button
• Rear panel: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C), 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C), 2 x USB 2.0 port(s) (2 x Type-A)C, 1 x VGA port, 2 x Intel dual 10Gb Ethernet ports, 1 x Realtek 1Gb Ethernet port, 1 x BIOS FlashBack button, 1 x Clear CMOS button, 1 x Optical S/PDIF out, 5 x Audio jacks

Motherboard

• 2/4 GPU-Ready: ASRock W790 WS
• 7 GPU-Ready: ASUS Pro WS W790E-SAGE SE

CPU

4th Gen Intel Xeon W-3500 series with up to 60 Cores

RAM

• 2/4 GPU-Ready: Up to 2048 GB DDR5 ECC Buffered, 8 RAM slots., Quad Channel DDR5 Memory Technology.
• 7 GPU-Ready: Up to 2048 GB DDR5 ECC Buffered, 8 RAM slots., 8-Channel Memory Architecture.

Expansion Slots

• 2/4 GPU-Ready: 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8), 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode, 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• 7 GPU-Ready: 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16), 3 x PCI-Express M.2, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

• 2/4 GPU-Ready: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode, 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode, 8 x SATA3 6.0 Gb/s Connectors, 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• 7 GPU-Ready: 1 x M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), 1 x M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), 1 x M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 1 x SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device, 1 x SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device, 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10

Graphics Cards

• 2/4 GPU-Ready: Up to 4 x 40xx/50xx-Series NVIDIA, Up to 4 x NVIDIA A-series
• 7 GPU-Ready: Up to 7 x NVIDIA A-series
• Available options: Nvidia A1000 8 Gb (4 DP) (Dedicated Display Card), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX PRO 6000 Blackwell 96Gb (4 DP), Nvidia H200 141Gb NVL (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

• 2/4 GPU-Ready:
• 7 GPU-Ready:

Onboard LAN

• 2/4 GPU-Ready: 1 x 2.5Gb Ethernet (Intel I225LM), 2 x 10Gb Ethernet (Marvell (Aquantia) AQC113CS), 10 Gigabit Dual Port Ethernet (2x RJ45) (optional), 25 Gigabit Dual Port Ethernet (2x SFP28) (optional), 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• 7 GPU-Ready: 1 x 1Gb Ethernet (Realtek), 2 x 10Gb Ethernet (Intel), 10 Gigabit Dual Port Ethernet (2x RJ45) (optional), 25 Gigabit Dual Port Ethernet (2x SFP28) (optional), 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)

Case

• 2/4 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 7 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 4/7 GPU-Ready Rackmount:
• Case Drive Bays: 3x 5.25in

Cooling System

• 2 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 2 x GPU water blocks
• 4 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 4 x GPU water blocks
• 7 GPU-Ready4/7 GPU-Ready Rackmount:
• Custom liquid cooling system (including loop for 1 x CPUs and 4/7 x GPUs). System includes computer and cooling unit for better stability and cooling performance.: CPU water block, 7 x GPU water blocks, External Cooling unit (radiator, pump, reservoir)

Power Supply

• 2 GPU-Ready:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 4 GPU-Ready for 4x A100, H100:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 4 GPU-Ready for 4 x 5090, H200, RTX PRO or 7x A100, H100, Ada:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 7 GPU-Ready for 7x RTX 50xx, RTX PRO, H200:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

Noise level and temperature

• 4 x NVIDIA RTX 5090: Idle noise level: up to 45 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 52 dB, Max load temperature (GPUs): Average 52 C / 125.6 F (min 50 C - max 70 C)

Dimensions & Weight

• 2/4 GPU-ready: Case
• 7 GPU-ready: Case
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 16.9 inches (43.0 cm), Depth: 21.3 inches (54.3 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)
• Rackmount chassis: Rackmountable; 4U; horizontal placement, Height: 6.9 inches (17.6 cm), Width: 17.6 inches (44.8 cm), Depth: 34.6 inches (88.0 cm), Weight: 121-143 lbs (55.0-65.0 kg)
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 17.3 inches (44.9 cm), Depth: 24.4 inches (62.0 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 1 (server): Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 145.5 lbs (66.5 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)

In the Box

• • Bizon Z5000 G2.
• • 1/2/3/4 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-z5000-0823-g2

Ports

• 2 GPU-Ready:
• Front panel: 2x USB 3.0, Mic, Headphone, Reset, Power button
• Rear panel: 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 ports, 2 x RJ45, 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 1 x Optical S/PDIF out, 5 x Audio jacks
• 4/6 GPU-Ready:
• Front panel: Mic, Headphone, Reset, Power button
• Rear panel: 2 x RJ45, 6 x USB 3.1 Gen 1 (1Gb LAN) / 4 x USB 3.1 Gen 1 (10Gb LAN), 1 x USB 3.1 Gen 2 Type-C, 1 x USB 3.1 Gen 2 Type-A, 4 x USB 2.0 (1Gb LAN) / 0 x USB 2.0 (10Gb LAN), 1 x Optical S/PDIF out, 5 x Audio jacks

Motherboard

• 2 GPU-Ready: GIGABYTE X299X AORUS MASTER
• 4/6 GPU-Ready: ASUS WS X299 SAGEASUS WS X299 SAGE/10G

CPU

Intel Core i9 processor with up to 18 Cores

RAM

• 2 GPU-Ready: Up to 256 GB DDR4 3200 MHz, 8 RAM slots., Quad Channel.
• 4/6 GPU-Ready: Up to 256 GB DDR4 3200 MHz, 8 RAM slots., Quad Channel.

Expansion Slots

• 2 GPU-Ready: 2 x PCIe 3.0 x16 slots, running at x16 (PCIEX16_1, PCIEX16_2), 2 x PCIe 3.0 x16 slots, running at x8 (PCIEX8_1, PCIEX8_2), 3 x PCI-Express M.2
• 4/6 GPU-Ready: 7 x PCIe 3.0/2.0 x16single x16 ordual x16/x16 ortriple x16/x16/x16 orquad x16/x16/x16/x16 orseven x16/x8/x8/x8/x8/x8/x8, 2 x PCI-Express M.2

Storage

• 2 GPU-Ready:
• CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
• Intel X299 Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P), 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel Optane Memory Ready, Intel Virtual RAID (VROC) support for CPU RAID
• 4/6 GPU-Ready:
• Intel X299 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 8 x SATA 6Gb/s port(s), 2 x U.2 connector (with 1Gb option) / 1 x U.2 connector (with 10Gb option), Support Raid 0, 1, 5, 10, Support Intel Rapid Storage Technology enterprise 5.1 for X-Series (6-core and above) CPU RAID, Supports Intel Smart Response Technology, Intel Rapid Storage Technology 15 support, Intel Optane Memory Ready, Intel Virtual RAID (VROC) support for CPU RAID

Graphics Cards

• 2 GPU-Ready: Up to 2 x 30xx-Series NVIDIA, Up to 2 x 40xx-Series NVIDIA
• 4/6 GPU-Ready: Up to 4 x 30xx-Series NVIDIA, Up to 4 x 40xx-Series NVIDIA, Up to 6 x NVIDIA A-series
• Available options: Nvidia RTX 3080 10 Gb (3 DP, HDMI), Nvidia RTX 3090 24 Gb (3 DP, HDMI), Nvidia RTX 4080 16 Gb (3 DP, HDMI), Nvidia RTX 4090 24 Gb (3 DP, HDMI), Nvidia RTX A6000 48Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 80Gb (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

• 2 GPU-Ready:
• 4/6 GPU-Ready:

Onboard LAN

• 2 GPU-Ready:
• 4/6 GPU-Ready:

Case

• 2/4 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 6 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 4/6 GPU-Ready Rackmount:
• Case Drive Bays: 3x 5.25in

Cooling System

• 2 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 2 x GPU water blocks
• 4 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 4 x GPU water blocks
• 6 GPU-Ready4/6 GPU-Ready Rackmount:
• Custom liquid cooling system (including loop for 1 x CPUs and 4/6 x GPUs). System includes computer and cooling unit for better stability and cooling performance.: CPU water block, 6 x GPU water blocks, External Cooling unit (radiator, pump, reservoir)

Power Supply

• 2 GPU-Ready:
• 4/6 GPU-Ready:

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

Noise level and temperature

• 4 x NVIDIA TITAN RTX: Idle noise level: up to 40 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 49 dB, Max load temperature (GPUs): Average 52 C / 125.6 F (min 50 C - max 54 C)
• 4 x NVIDIA RTX 3090: Idle noise level: up to 45 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 52 dB, Max load temperature (GPUs): Average 52 C / 125.6 F (min 50 C - max 70 C)

Dimensions & Weight

• 2/4 GPU-ready: Case
• 6 GPU-ready: Case
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 17.3 inches (44.9 cm), Depth: 24.4 inches (62.0 cm)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)
• Rackmount chassis: Rackmountable; 4U; horizontal placement, Height: 6.9 inches (17.6 cm), Width: 17.6 inches (44.8 cm), Depth: 34.6 inches (88.0 cm), Weight: 121-143 lbs (55.0-65.0 kg)
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 17.3 inches (44.9 cm), Depth: 24.4 inches (62.0 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 1 (server): Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 145.5 lbs (66.5 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)

In the Box

• • Bizon Z5000.
• • 1/2 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 22.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Windows 10 Pro (optional).

Part Number

bizon-z5000-042308-23
