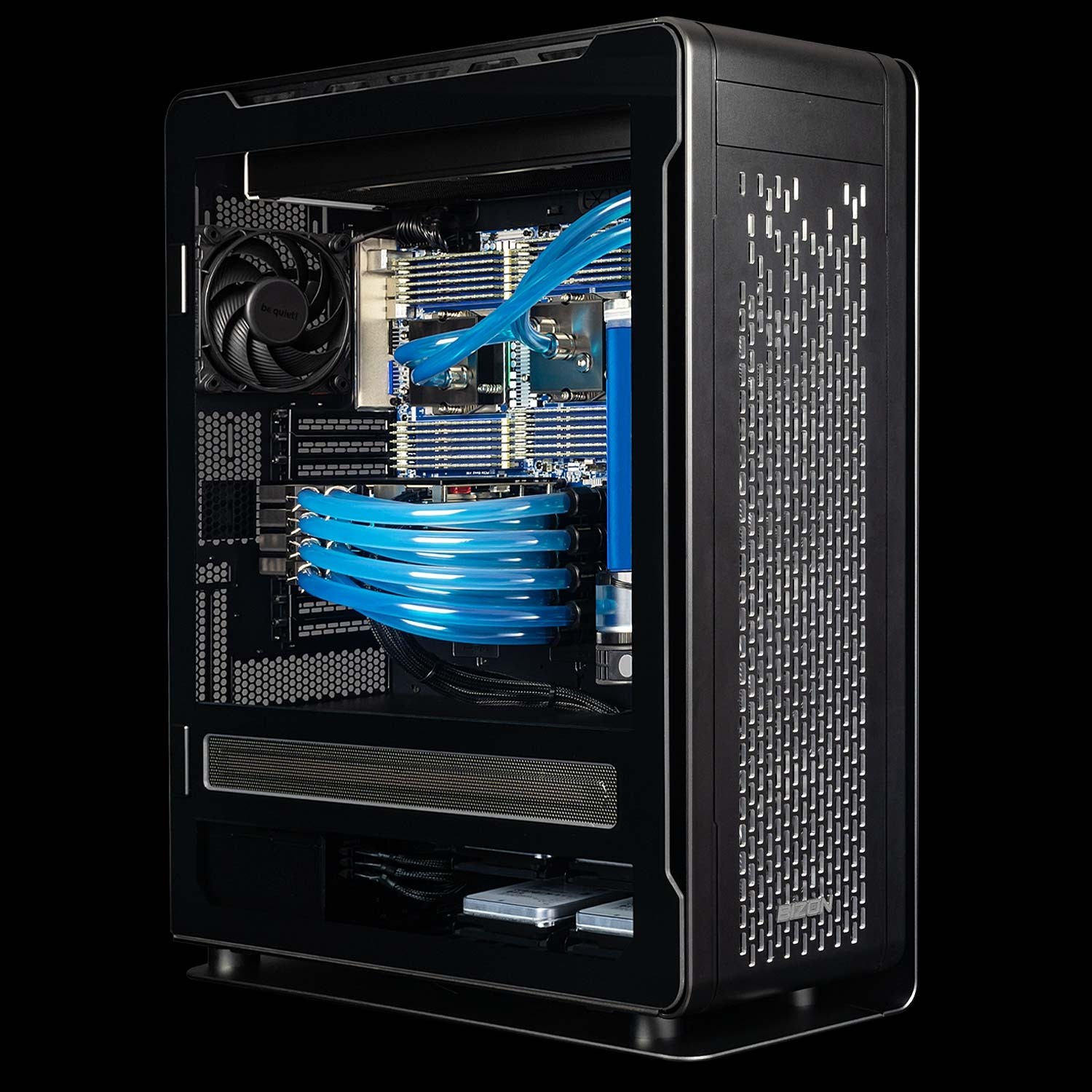

BIZON Z8000 G3 – Dual Intel Xeon Scalable CPUs Liquid-cooled NVIDIA – Up to 5 GPU, up to 128 cores

Ports

• Front panel: 2x USB 3.0, Mic, Headphone, Reset, Power button
• Rear panel: 4 x USB 3.1 Gen1 Type-A, 1 x VGA, 2 x RJ45, 3 x Audio jacks

Motherboard

• • Dual 4th/5th Gen Intel Xeon Scalable (Socket-4677) support.
• • 5 x PCI-E slots.
• • Supports 10x SATA HDD/SSD and 2x M.2 SSD
• • Intel C741 chipset.

CPU

Dual Intel Xeon Scalable processors with up to 64 Cores (per CPU)

RAM

• • Up to 2048 GB DDR5 ECC Buffered
• • 16 RAM slots.

Expansion Slots

• • 5 x PCIe 5.0 x16
• • 1 x PCIe 5.0 x8
• • 2 x PCI-Express M.2

Storage

• • 8 x SATA3 6Gb/s via Slim SAS port (SFF-8654) (RAID 0, 1, 5, 10)
• • 2 x SATA DOM 6Gb/s ports (RAID 0, 1)
• • 2 x M.2 Socket 3, PCIe Gen5 x4, with M Key, type 2280/22110 storage devices support

Graphics Cards

• Available options: Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX PRO 6000 Blackwell 96Gb (4 DP), Nvidia H200 141Gb NVL (No outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

6-channel Realtek ALC888

Onboard LAN

• • 2 x 10Gb/s BASE-T LAN ports (Broadcom BCM57416)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)

Wireless

N/A

Case

• 2/4 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 6 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 4/6 GPU-Ready Rackmount:
• Case Drive Bays: 3x 5.25in

Cooling System

• 2 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 2 x GPU water blocks
• 4 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, 2 x CPU water block, 4 x GPU water blocks
• 6 GPU-Ready / 4/6 GPU-Ready Rackmount:
• Custom liquid cooling system (including loop for 2 x CPUs and 4/6 x GPUs). System includes computer and cooling unit for better stability and cooling performance.: 2 x CPU water block, 4/6 x GPU water blocks, External Cooling unit (radiator, pump, reservoir)

Power Supply

• 1 GPU-Ready for 1x RTX 5090/40xx:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 4 GPU-Ready for 6x RTX 40xx, Ada, 2x 5090, H200:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 6 GPU-Ready for 6x RTX 50xx, RTX PRO, H200:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

Noise level and temperature

• 4 x NVIDIA RTX 5090: Idle noise level: up to 45 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 52 dB, Max load temperature (GPUs): Average 52 C / 125.6 F (min 50 C - max 70 C)

Dimensions & Weight

• 2/4 GPU-ready: Case
• 5 GPU-ready: Case
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 16.9 inches (43.0 cm), Depth: 21.3 inches (54.3 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)
• Rackmount chassis: Rackmountable; 4U; horizontal placement, Height: 6.9 inches (17.6 cm), Width: 17.6 inches (44.8 cm), Depth: 34.6 inches (88.0 cm), Weight: 121-143 lbs (55.0-65.0 kg)
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 16.9 inches (43.0 cm), Depth: 21.3 inches (54.3 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 1 (server): Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 145.5 lbs (66.5 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)

In the Box

• • Bizon Z8000 G3.
• • 1/2/3 x Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Microsoft Windows Server 2022 Standard (optional).
• • No operating system (optional).

Part Number

bizon-z8000-g3-0423
