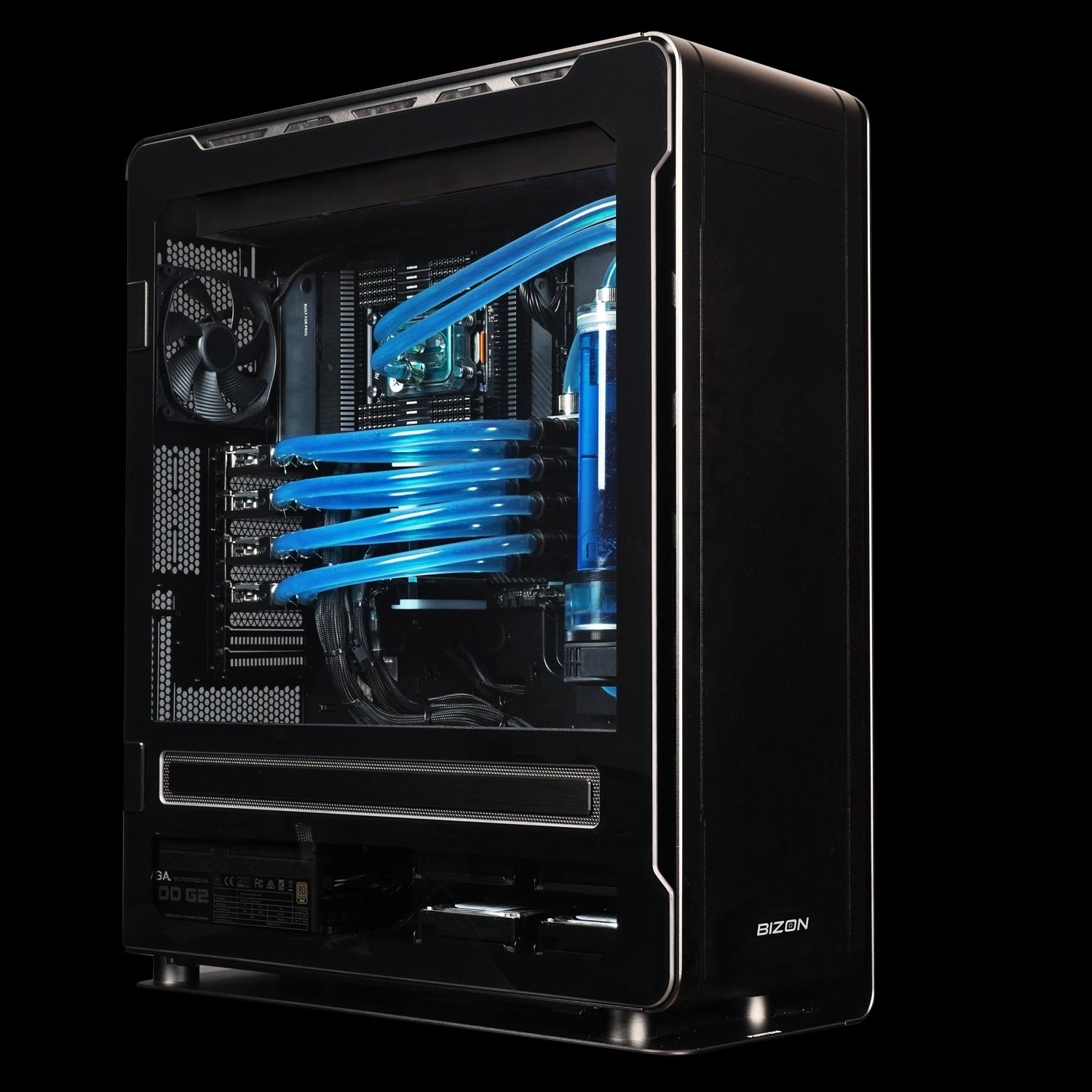

BIZON ZX5500 – Custom Water-cooled 4-7 GPU NVIDIA – AMD Threadripper Pro

Ports

• Front panel: 2x USB 3.0, 1 x USB 3.1 GEN 2 Type-C, Mic, Headphone, Reset, Power button
• Rear panel: 1 x DisplayPort 1.1a, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s), 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 2 x USB 3.2 Gen1 Type-A Ports, 2 x RJ-45 LAN Ports, 1 x RJ45 Dedicated IPMI LAN Port, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack)

Motherboard

• ASRock WRX90 WS EVO: AMD RYZEN Threadripper PRO support., 7 x PCI-E 5.0 slots., Supports 4x SATA HDD/SSD and 2x M.2 SSD, AMD WRX90 chipset.

CPU

AMD RYZEN Threadripper Pro processor with 24, 32, 64 or 96 Cores

RAM

• • Up to 1024 GB DDR5 ECC
• • 8 x DDR5 DIMM Slots.
• • Eight Channel DDR5 Memory Technology.

Expansion Slots

• • 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)

Storage

• CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode, 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s), 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
• Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP) (Dedicated Display Card), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX PRO 6000 Blackwell 96Gb (4 DP), Nvidia H200 141Gb NVL (No outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Onboard LAN

• • 2 x 10 Gigabit LAN (Intel X710-AT2)
• • 1 x Dedicated IPMI (Realtek RTL8211F)
• • 10 Gigabit Dual Port Ethernet (2x RJ45) (optional)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)

Wireless

• Wi-Fi: 802.11ax Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax, Supports Dual-Band 2x2 with extended 6GHz band support, Supports MU-MIMO
• Bluetooth: Bluetooth 5.2 + High speed class II

Case

• 2/4 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 7 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 4/7 GPU-Ready Rackmount:
• Case Drive Bays: 3x 5.25in

Cooling System

• 2 GPU-Ready:
• Enterprise-class custom water cooling system, including cooling for processor and graphic cards.: Radiators, Water pump, Reservoir, CPU water block, 2 x GPU water blocks
• 4 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 4 x GPU water blocks
• 7 GPU-Ready / 4/7 GPU-Ready Rackmount:
• Custom liquid cooling system (including cooling for 1 x CPU and 4/7 x GPUs). The system includes a computer and a cooling unit for better stability and cooling performance.: CPU water block, 7x GPU water blocks, External Cooling unit (radiator, pump, reservoir)

Power Supply

• 2 GPU-Ready:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 4 GPU-Ready for 4x 4090, Ada, A100, H100 or 2x 5090, H200:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 4 GPU-Ready for 4 x 5090, H200, RTX PRO or 7x 40xx, A100, H100, Ada:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 7 GPU-Ready for 7x RTX 50xx, RTX PRO, H200:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

Noise level and temperature

• 4 x NVIDIA RTX 5090, A6000, A100: Idle noise level: up to 43 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 46 dB, Max load temperature (4x GPUs): Average 52 C / 125.6 F (min 50 C - max 70 C)
• 7 x NVIDIA RTX 5090, H200: Idle noise level: up to 52 dB, Idle temperature (GPUs): Average 35 C / 91.4 F (min 32C - max 38C), Max load noise level (stress test): up to 63 dB, Max load temperature (7x GPUs): Average 76 C / 168.8 F (min 73C - max 80C)

Dimensions & Weight

• 2/4 GPU-ready:
• Case: Height: 29.5 inches (75.0 cm), Width: 10.6 inches (27.0 cm), Depth: 24.2 inches (61.5 cm)
• Shipping Package: Height: 35.6 inches (90.5 cm), Width: 15.0 inches (38.0 cm), Length: 28.7 inches (73.0 cm), Weight: 121-143 lbs (55.0-65.0 kg) (shipped on pallet)
• 7 GPU-ready:
• Case: Height: 29.5 inches (75.0 cm), Width: 10.6 inches (27.0 cm), Depth: 24.2 inches (61.5 cm)
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 16.9 inches (43.0 cm), Depth: 21.3 inches (54.3 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 1 (computer): Height: 35.6 inches (90.5 cm), Width: 15.0 inches (38.0 cm), Length: 28.7 inches (73.0 cm), Weight: 121-143 lbs (55.0-65.0 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)
• Rackmount chassis: Rackmountable; 4U; horizontal placement, Height: 6.9 inches (17.6 cm), Width: 17.6 inches (44.8 cm), Depth: 34.6 inches (88.0 cm), Weight: 121-143 lbs (55.0-65.0 kg)
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 16.9 inches (43.0 cm), Depth: 21.3 inches (54.3 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 1 (server): Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 145.5 lbs (66.5 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)

In the Box

• • Bizon ZX5500
• • 1/2/3/4 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-zx5500-0423

Ports

• Front panel: 2x USB 3.0, 1 x USB 3.1 GEN 2 Type-C, Mic, Headphone, Reset, Power button
• Rear panel: 2 x Antenna Ports, 1 x D-Sub Port, 1 x Optical SPDIF Out Port, 2 x USB 4.0 Thunderbolt 4 Type-C Ports, 2 x Mini DisplayPort Input Ports (For Thunderbolt), 4 x USB 3.2 Gen2 Ports (10 Gb/s), 2 x USB 3.2 Gen1 Ports, 2 x RJ-45 LAN Ports, 1 x RJ45 Dedicated IPMI LAN Port, 1 x Clear CMOS Button, 5 x Audio Jacks

Motherboard

• ASRock WRX80 Creator: AMD RYZEN Threadripper Pro support., 7 x PCI-E 4.0 slots., Supports 8x SATA HDD/SSD and 2x M.2 SSD, AMD WRX80 chipset.
• ASUS Pro WS WRX80E-SAGE SE:
• Supermicro MBD-M12SWA-TF-O: Note: motherboard model may vary between those three options listed above.Contact sales if you have a specific preference.

CPU

AMD RYZEN Threadripper Pro processor with 16, 24, 32, or 64 Cores

RAM

• • Up to 2048 GB DDR4 3200 MHz
• • 8 RAM slots.
• • 8 Channel Memory Architecture.

Expansion Slots

• • 7 x PCI Express 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8)
• • 2 x PCI-Express M.2

Storage

• CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 8 x SATA3 6.0 Gb/s Connectors, 1 x U.2 Connector

Graphics Cards

• Available options: Nvidia RTX 4080 16 Gb (3 DP, HDMI), Nvidia RTX 4090 24 Gb (3 DP, HDMI), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX A6000 48Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia A100 40Gb (No outputs), Nvidia A100 80Gb (No outputs), Nvidia H100 94Gb NVL (No outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

7.1 CH HD Audio (Realtek ALC4050H+ALC1220)

Onboard LAN

• • 2 x 10 Gigabit LAN
• • 1 x Dedicated IPMI
• • 1 x 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)

Wireless

• Wi-Fi: 802.11ax Wi-Fi 6E Module, Supports Wi-Fi 802.11a/b/g/n/ax, Supports Dual-Band 2x2 160MHz, Supports MU-MIMO
• Bluetooth: Bluetooth + High speed class II

Case

• 2/4 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 7 GPU-Ready:
• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in
• 4/7 GPU-Ready Rackmount:
• Case Drive Bays: 3x 5.25in

Cooling System

• 2 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 2 x GPU water blocks
• 4 GPU-Ready:
• Full Custom Liquid Cooling system including cooling for CPU and GPUs: Radiators, Water pump, Reservoir, CPU water block, 4 x GPU water blocks
• 7 GPU-Ready / 4/7 GPU-Ready Rackmount:
• Custom liquid cooling system (including loop for 1 x CPUs and 4/6 x GPUs). The system includes a computer and cooling unit for better stability and cooling performance.: CPU water block, 7 x GPU water blocks, External Cooling unit (radiator, pump, reservoir)

Power Supply

• 2 GPU-Ready:
• 4 GPU-Ready:
• 7 GPU-Ready:

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

Noise level and temperature

• 4 x NVIDIA RTX 4090, A6000, A100: Idle noise level: up to 43 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 46 dB, Max load temperature (GPUs): Average 52 C / 125.6 F (min 50 C - max 70 C)

Dimensions & Weight

• 2/4 GPU-ready: Case
• 7 GPU-ready: Case
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 17.3 inches (44.9 cm), Depth: 24.4 inches (62.0 cm)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)
• Rackmount chassis: Rackmountable; 4U; horizontal placement, Height: 6.9 inches (17.6 cm), Width: 17.6 inches (44.8 cm), Depth: 34.6 inches (88.0 cm), Weight: 121-143 lbs (55.0-65.0 kg)
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 17.3 inches (44.9 cm), Depth: 24.4 inches (62.0 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 1 (server): Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 145.5 lbs (66.5 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)

In the Box

• • Bizon ZX5500
• • 1/2/3 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 22.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Windows 10 Pro (optional).

Part Number

bizon-zx5500-0423
