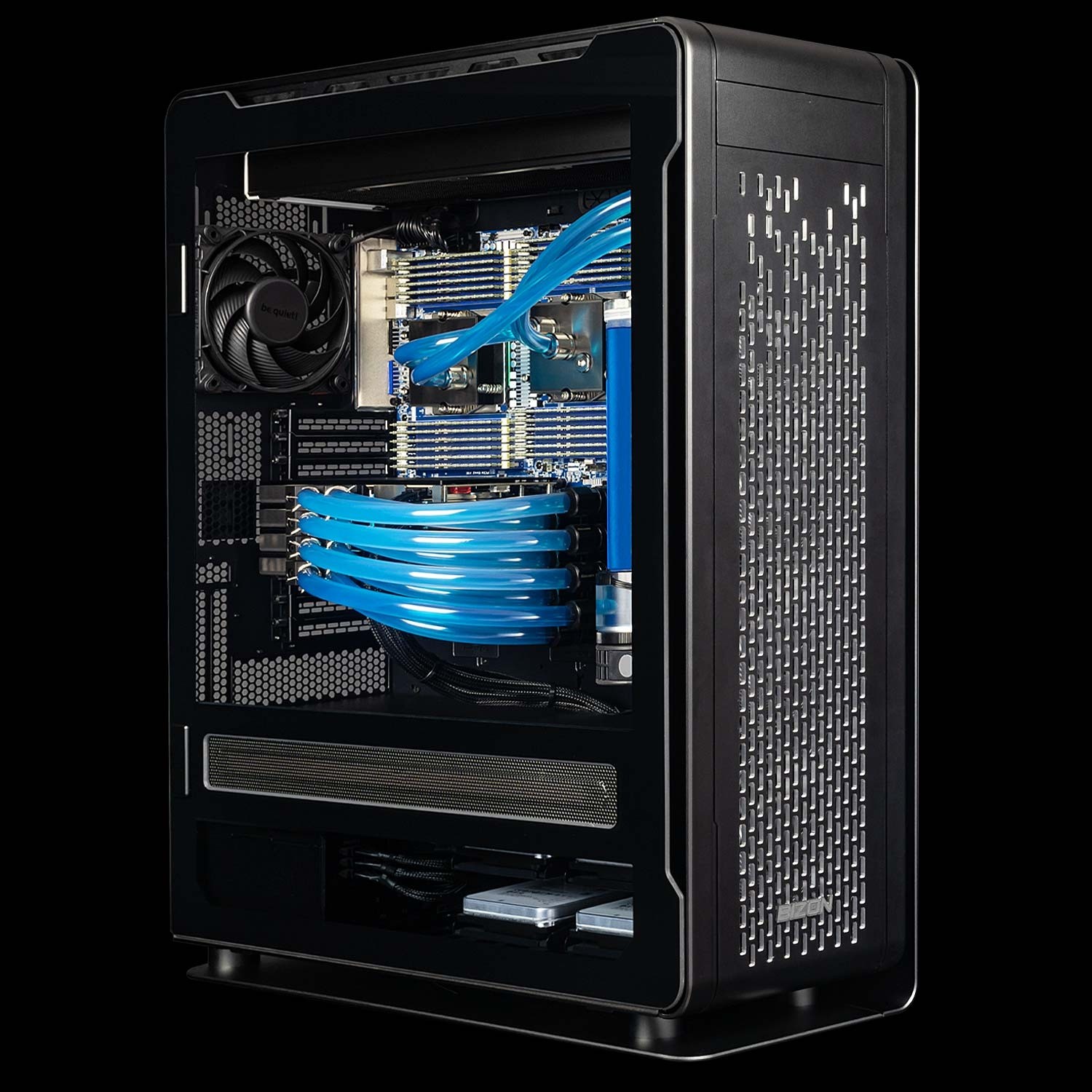

BIZON ZX6000 G2 – Water-cooled Dual AMD EPYC 9004, 9005 Workstation – Scientific Research an Rendering PC – Up to 4 GPU, Up to 384 Cores CPU

Ports

• Front panel: 1x USB 3.2 Gen1, Reset, Power button
• Rear panel: 2 x USB 3.2 Gen1, 1 x VGA, 1 x COM, 2 x RJ45, 1 x MLAN (IPMI_dedicated), 1 x ID button with LED

Motherboard

• • Dual AMD EPYC 9004/9005 Series Processor LGA 6096 (Socket SP5) support.
• • 4 x PCI-E slots.
• • Supports 4x SATA HDD/SSD, 4x NVMe SSD, M.2 SSD
• • System on Chip.

CPU

• • AMD EPYC 9004/9005 series processor family
• • Dual processors, 5nm
• • Up to 192-core, 384 threads per processor
• • cTDP up to 500W

Memory

• • Up to 3072 GB ECC Buffered
• • 24 RAM slots.
• • DDR5 memory supported only
• • 12-Channel memory architecture per processo

LAN

• • 2 x 10Gb/s BASE-T LAN ports (Broadcom BCM57416)
• • 1 x 10/100/1000 management LAN (Dedicated IPMI)
• • 10 Gigabit Dual Port Ethernet (2x RJ45)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 40/56GbE Dual-Port QSFP28 Network Interface Card (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)

Video

• • Integrated in Aspeed AST2600
• • 2D Video Graphic Adapter with PCIe bus interface
• • 1920x1200@60Hz 32bpp, DDR4 SDRAM

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP) (Dedicated Display Card), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX PRO 6000 Blackwell 96Gb (4 DP), Nvidia H200 141Gb NVL (No outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Audio

N/A

Storage

• • 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA, from CPU_1
• • 1 x SlimSAS 4i for 4 x SATA, from CPU_0
• • 1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

RAID

N/A

Expansion Slots

• • Slot_4: PCIe x16 (Gen5 x16), from CPU_0
• • Slot_3: PCIe x16 (Gen5 x16), from CPU_0
• • Slot_2: PCIe x16 (Gen5 x16), from CPU_1
• • Slot_1: PCIe x16 (Gen5 x16), from CPU_1
• • 2 x MCIO 8i (PCIe Gen5 x8 or SATA), from CPU_1

TPM

1 x TPM header with SPI interface

Case

• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in

Cooling System

• Full Custom Liquid Cooling system including cooling for CPUs and GPUs: Radiators, Water pump, Reservoir, 2 x CPU water blocks, 2-4 x GPU water blocks

Power Supply

• 1 GPU-Ready for 1x RTX 5090/4090:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 4 GPU-Ready for 4x RTX 40xx, Ada, A100, H100 or 2x 5090, H200:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).
• 4 GPU-Ready for 4 x 5090, H200, RTX PRO:
• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Noise level and temperature

• 4 x NVIDIA RTX 5090, A6000, A100: Idle noise level: up to 43 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 46 dB, Max load temperature (GPUs): Average 52 C / 125.6 F (min 50 C - max 70 C)

Dimensions & Weight

• Case: /
• Shipping Package: Height: 35.6 inches (90.5 cm), Width: 15.0 inches (38.0 cm), Length: 28.7 inches (73.0 cm), Weight: 121-143 lbs (55.0-65.0 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon ZX6000.
• • 1/2/3 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-zx6000-0323-g2

Ports

• Front panel: 2x USB 3.0, 2x USB 2.0, Reset, Power button
• Rear panel: 2 x USB 3.0, 1 x VGA, 1 x COM_1, 2 x RJ45, 1 x RJ45 IPMI_dedicated, 1 x ID button with LED

Motherboard

• • Dual AMD EPYC 7003/7002 Series Processor (Socket SP3) support.
• • 5 x PCI-E slots.
• • Supports 4x SATA HDD/SSD, 3x NVMe SSD, M.2 SSD
• • System on Chip.

CPU

Two AMD EPYC 7003/7002 Series processors with up to 64 Cores (per CPU)

RAM

• • Up to 1024 GB DDR4 3200 MHz ECC Buffered
• • 16 RAM slots.

Expansion Slots

• • 3 x PCIe 4.0 x16 (x16 mode)
• • 2 x PCIe 4.0 x8 (x8 mode)
• • 1 x PCI-Express M.2

Storage

• Dual CPU: 4 x SATA 6Gb/s port(s), 3 x NVMe PCIe Gen 4 x4 ports (SlimSAS), 1 x M.2 slot, M Key, PCIe Gen4 x4, supports 2280/22110 cards

Graphics Cards

• Available options: Nvidia RTX 4080 16 Gb (3 DP, HDMI), Nvidia RTX 4090 24 Gb (3 DP, HDMI), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX A6000 48Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 80Gb (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard LAN

• • 2 x 10GbE BASE-T LAN ports (1 x Broadcom BCM57416)
• • Dedicated IPMI (MLAN)
• • 10 Gigabit Dual Port Ethernet (optional)

Case

• High-End Case with anodized aluminum panels and tempered glass side panel.:
• Case Drive Bays: 4x 2.5in, 6x 3.5in

Cooling System

• Full Custom Liquid Cooling system including cooling for CPUs and GPUs: Radiators, Water pump, Reservoir, 2 x CPU water blocks, 2-4 x GPU water blocks

Power Supply

• 2 GPU-Ready:
• 4 GPU-Ready:

Noise level and temperature

• 4 x NVIDIA RTX 4090, A6000, A100: Idle noise level: up to 43 dB, Idle temperature (GPUs): Average 27 C / 80.6 F (min 25 C - max 30 C), Max load noise level (stress test): up to 46 dB, Max load temperature (GPUs): Average 52 C / 125.6 F (min 50 C - max 70 C)

Dimensions & Weight

• • Height: 29.5 inches (75.0 cm)
• • Width: 10.6 inches (27.0 cm)
• • Depth: 24.2 inches (61.5 cm)
• • Height: 35.6 inches (90.5 cm)
• • Width: 15.0 inches (38.0 cm)
• • Length: 28.7 inches (73.0 cm)
• • Weight: 121-143 lbs (55.0-65.0 kg) (shipped on pallet)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon ZX6000.
• • Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 22.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 10 Pro (optional).
• • Windows 11 Pro (optional).

Part Number

bizon-zx6000-1022
