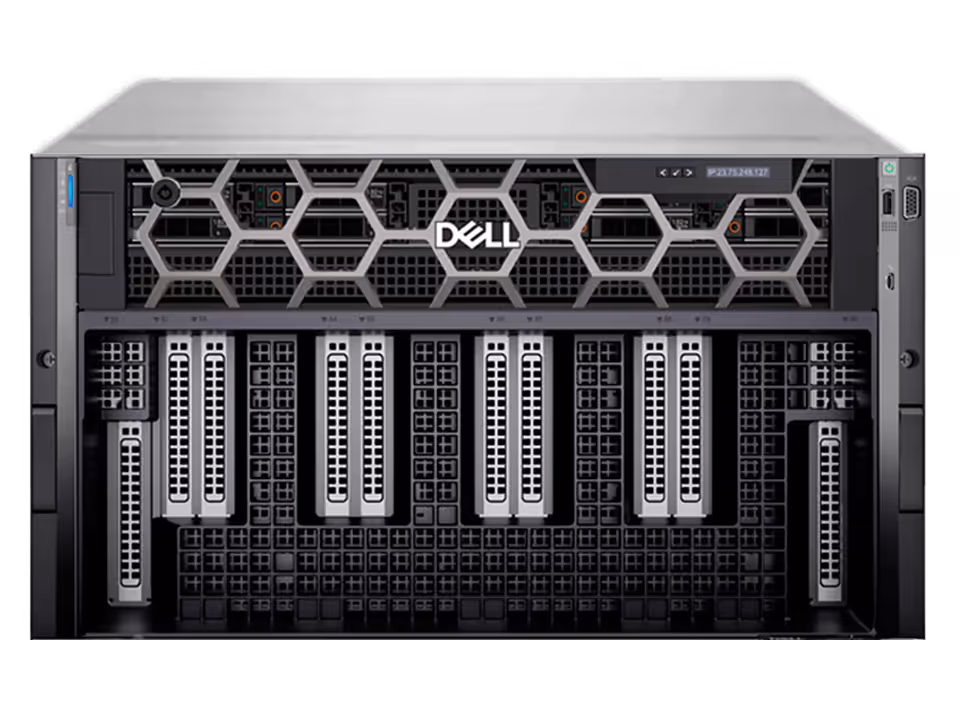

Dell: NVIDIA HGX H200 GPU Server

Model

PowerEdge XE9680

Form Factor

6U rack server

Processor

• • Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
• • Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor

GPU

• • 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or
• • 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology

Memory

• • 32 DDR5 DIMM slots, supports RDIMM 4 TB max,
• • Speeds up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processors
• • Speeds up to 4800 MT/s on the 4th Generation Intel Xeon Scalable processors
• • Supports registered ECC DDR5 DIMMs only

Storage

• • Internal Controllers (RAID): PERC H965i
• • Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
• • Software RAID: S160 Front Bays
• • Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB
• • Up to 16 x E3.S NVMe direct drives max 122.88 TB

Cooling

Air cooled

Fans

• • Up to six high performance (HPR) gold grade fans installed in mid tray
• • Up to ten high performance (HPR) gold grade fans installed on the rear of the system
• • All are hot swap fans

Power Supply

• • 3200W Titanium 277 VAC or 260-400 VDC, hot swap redundant
• • 2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant

Dimensions

• • Height -- 263.2 mm (10.36 inches)
• • Width -- 482.0 mm (18.97 inches)
• • Depth -- 1008.77 mm (39.71 inches) with bezel -- 995 mm (39.17 inches) without bezel
• • Weight -- up to 113.3 kg (249.78 pounds)

Warranty & Support

3-Year Next-Business-Day Onsite Warranty & Support
