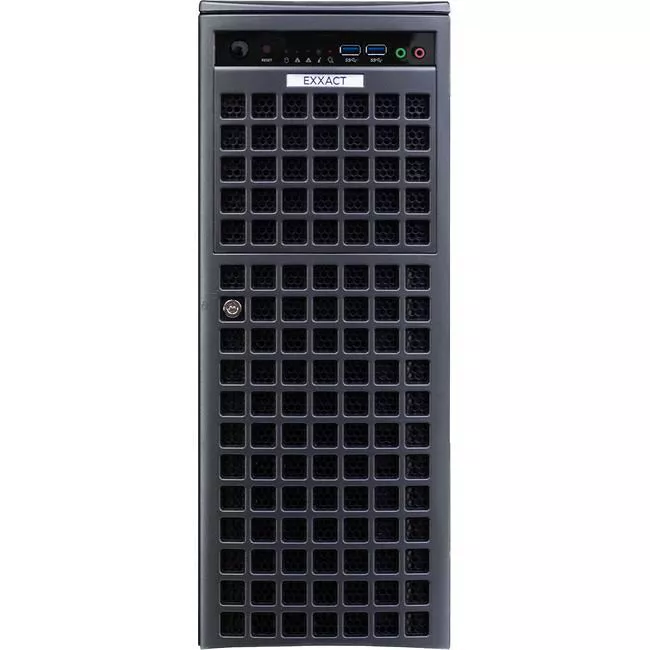

Exxact TensorEX 4U Rack-Mountable Workstation - 2x 4th/5th Gen Intel Xeon Scalable processor
by
Complete Technical Specifications
Processor & Chipset
Number of Processors Supported:
2
Processor Socket:
Socket E LGA-4677
Processor Type:
Xeon
Processor Supported:
- Bronze 34XX
- Bronze 35XX
- Silver 44XX
- Silver 45XX
- Gold 54XX
- Gold 55XX
- Gold 64XX
- Gold 65XX
- Platinum 84XX
- Platinum 85XX
- Max 94XX
Thermal Design Power (TDP):
350 W
Chipset Manufacturer:
Intel
Chipset Model:
C741
Memory
Memory Technology:
- DDR5 SDRAM
Memory Standard:
DDR5-4800/PC5-38400
Number of Total Memory Slots:
16
Controllers
SATA3:
- RAID 0, 1, 5, 10
NVMe:
- 8x NVMe drives
Display & Graphics
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2600 BMC
I/O Expansions
PCI Express:
- 7x PCI-E 5.0 x16 slots (Supports 4x double-wide cards)
Drive Bays
Hot-swap:
- 8x 3.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB 3.0 Ports:
- 2x USB 3.0 (Front)
- 3x USB 3.0 (Rear)
- 1x USB 3.0 (Rear, Type-C)
Number of SATA Interfaces:
8
LAN:
- 2x RJ45 10GBASE-T
- 1x RJ45 Management Port
Onboard Video:
1x VGA Connector
Power Description
Number of Power Supplies:
2
Redundant Power Supplies:
Yes
Maximum Power Supply Wattage:
2000 W
Certification:
80 Plus Titanium
Physical Characteristics
Color:
Black
Form Factor:
Rack-mountable
Rack Height:
4U
Height:
7.0"
Width:
17.2"
Depth:
27"
