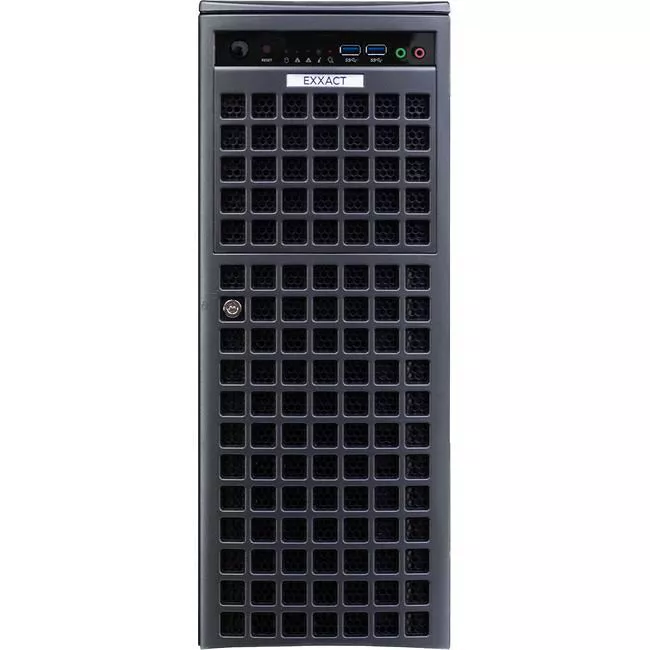

Exxact TensorEX 4U Rack-Mountable Workstation - 2x 4th/5th Gen Intel Xeon Scalable processor
Exxact
Overview
Exxact TensorEX 4U rack-mount workstation supports dual 4th/5th Gen Intel Xeon Scalable processors with Intel C741 chipset and seven PCIe 5.0 x16 slots (four double-wide GPU slots). 2000W redundant power and 10GbE make this a high-density multi-GPU AI platform that fits standard server racks while retaining workstation-class flexibility.
Key Features
- Dual 4th/5th Gen Intel Xeon Scalable (up to 350W each)
- 7x PCIe 5.0 x16 (4x double-wide GPU support)
- 2000W redundant power supply
- Dual 10GbE (RJ45)
- 8x 3.5" hot-swap drive bays + 8x NVMe
Ideal For
Enterprises and research teams who need a dense multi-GPU AI compute system in standard rack infrastructure, combining Xeon reliability with GPU-configurable training capacity.
Processor & Chipset
- Number of Processors Supported: 2
- Processor Socket: Socket E LGA-4677
- Processor Type: Xeon
- Processor Supported: Bronze 34XX, Bronze 35XX, Silver 44XX, Silver 45XX, Gold 54XX, Gold 55XX, Gold 64XX, Gold 65XX, Platinum 84XX, Platinum 85XX, Max 94XX
- Thermal Design Power (TDP): 350 W
- Chipset Manufacturer: Intel
- Chipset Model: C741
Memory
- Memory Technology: DDR5 SDRAM
- Memory Standard: DDR5-4800/PC5-38400
- Number of Total Memory Slots: 16
Controllers
- SATA3: RAID 0, 1, 5, 10
- NVMe: 8x NVMe drives
Display & Graphics
- Graphics Controller Manufacturer: ASPEED
- Graphics Controller Model: AST2600 BMC
I/O Expansions
- PCI Express: 7x PCI-E 5.0 x16 slots (Supports 4x double-wide cards)
Drive Bays
- Hot-swap: 8x 3.5" Hot-swap drive bays
Interfaces/Ports
- Total Number of USB 3.0 Ports: 2x USB 3.0 (Front), 3x USB 3.0 (Rear), 1x USB 3.0 (Rear, Type-C)
- Number of SATA Interfaces: 8
- LAN: 2x RJ45 10GBASE-T, 1x RJ45 Management Port
- Onboard Video: 1x VGA Connector
Power Description
- Number of Power Supplies: 2
- Redundant Power Supplies: Yes
- Maximum Power Supply Wattage: 2000 W
- Certification: 80 Plus Titanium
Physical Characteristics
- Color: Black
- Form Factor: Rack-mountable
- Rack Height: 4U
- Height: 7.0"
- Width: 17.2"
- Depth: 27"
$21,936.20
Prices may vary. Verify on vendor site.
Quick Specs
- Processor & Chipset
- 2
- Memory
- DDR5 SDRAM
- Controllers
- RAID 0, 1, 5, 10
- Display & Graphics
- ASPEED
- I/O Expansions
- 7x PCI-E 5.0 x16 slots (Supports 4x double-wide cards)
- Drive Bays
- 8x 3.5" Hot-swap drive bays
