Complete Technical Specifications
Processor & Chipset
Number of Processors Supported:
1
Processor Socket:
Socket E LGA-4677
Processor Type:
Xeon
Processor Supported:
- W-3400
Thermal Design Power (TDP):
350W
Chipset Manufacturer:
Intel
Chipset Model:
W790
Memory
Maximum Memory:
2 TB
Memory Technology:
- DDR5 SDRAM
Memory Standard:
DDR5-4800/PC4-38400
Number of Total Memory Slots:
8
Controllers
SATA3:
- Via optional Intel VROC HW key
- SATA RAID 0, 1, 5, 10
- PCI-E RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2600
Network & Communication
Ethernet Technology:
- 10GBASE-T (10GbE)
- 1000BASE-T (1GbE)
I/O Expansions
PCI Express (W-3400 Processor):
- 7x PCI-E 5.0 x16 slots (Supports 4x Double-Wide cards, x16/x16/x16/x16/x8/x16)
- 3x PCI-E 5.0 x4 M.2 slot (Up to 22110)
Drive Bays
Fixed:
- 4x 3.5"/2.5" internal
- 3x 2.5" internal
Interfaces/Ports
USB Ports:
- 1x USB 3.1 Gen 2 port (front, Type-C)
- 2x USB 3.0 ports (front, Type-A)
- 1x USB 3.2 Gen 2x2 port (rear, Type-C)
- 5x USB 3.2 Gen 2 ports (rear, 4x Type-A, 1x Type-C)
- 2x USB 2.0 ports (rear, Type-A)
Number of SATA Interfaces:
- 8x SATA3 Ports
Number of NVMe Interfaces:
- 2x U.2
- 2x M.2
LAN:
- 1x RJ45 10GBASE-T (10GbE) Ethernet LAN Ports
- 1x RJ45 1000BASE-T (1GbE) Ethernet LAN Ports
Onboard Video:
1x VGA Connector
Onboard Audio:
7.1 HD Audio w/ optical S/PDIF
Serial Port / Header:
1x COM Header
TPM:
1x SPI TPM Header
Power Description
Number of Power Supplies:
1
Redundant Power Supplies:
No

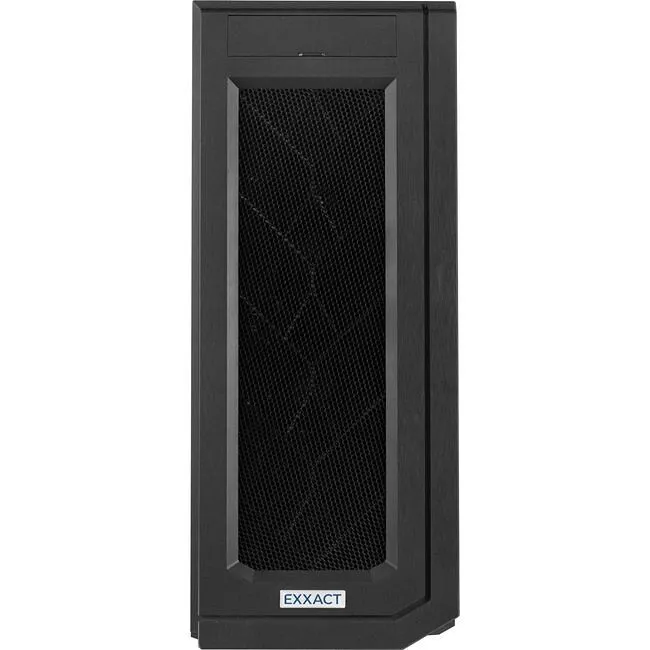

Physical Characteristics
Color:
Black
Form Factor:
Full-Tower
Height:
22.83"
Width:
9.45"
Depth:
22.05"
