Overview

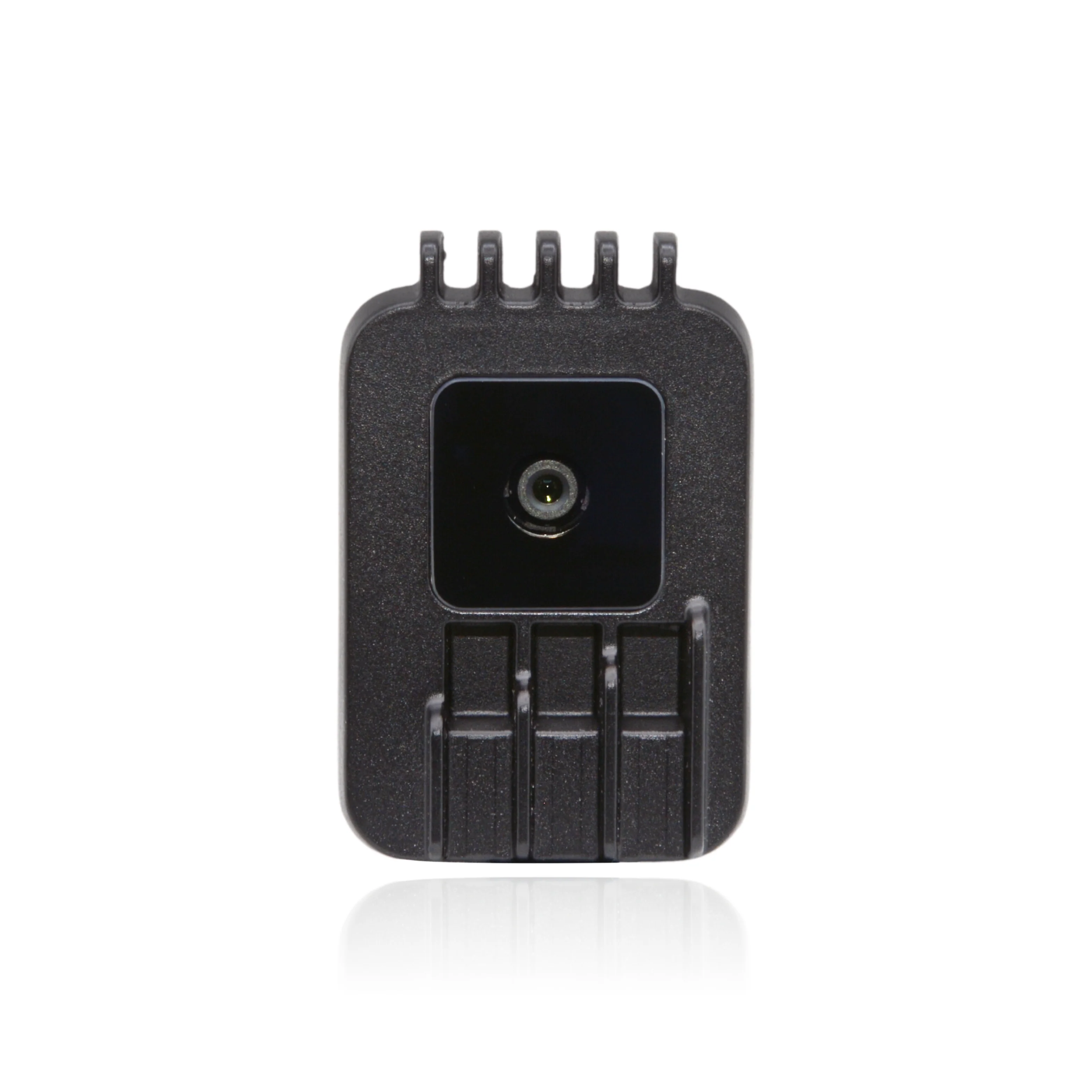

Luxonis OAK-1 AI camera combining a 12MP IMX378 sensor with Intel Movidius Myriad X VPU providing 4 TOPS of on-device neural inference. Auto-focus lens supports 8K still capture. Runs DepthAI models directly on-device over USB3, eliminating the need for a host GPU for vision AI workloads.
Key Features
- 12MP IMX378 auto-focus sensor
- Intel Movidius Myriad X — 4 TOPS on-device inference
- USB3 plug-and-play connection to host
- DepthAI software stack included
- Runs detection, classification, and pose models on-device
Ideal For
Developers and researchers building computer vision prototypes who want GPU-free on-device inference for object detection, person tracking, or OCR applications.
Feature 1
4 TOPS of processing power (1.4 TOPS for AI)
Dimensions
36x54.5x27.8 mm; Weight: 53.1g
Feature 3
USB2 / USB3 for power delivery and communication
Variant
Auto Focus
Sensor
IMX378 (PY004)
DFOV / HFOV / VFOV
78° / 66° / 54°
Resolution
up to 12MP (4056x3040)
Focus
AF: 8cm - ∞
Max Framerate
up to 60 FPS
Spectral Range
Visible
Shutter Type
Rolling
Sensor size
1/2.3"
F-number
1.8 ± 5%
Effective Focal Length
4.81mm
Pixel size
1.55µm
$169.00
Prices may vary. Verify on vendor site.
Quick Specs
- Feature 1
- 4 TOPS of processing power (1.4 TOPS for AI)
- Dimensions
- 36x54.5x27.8 mm; Weight: 53.1g
- Feature 3
- USB2 / USB3 for power delivery and communication
- Variant
- Auto Focus
- Sensor
- IMX378 (PY004)
- DFOV / HFOV / VFOV
- 78° / 66° / 54°
Tags
computer-visionedge-inference
