Overview

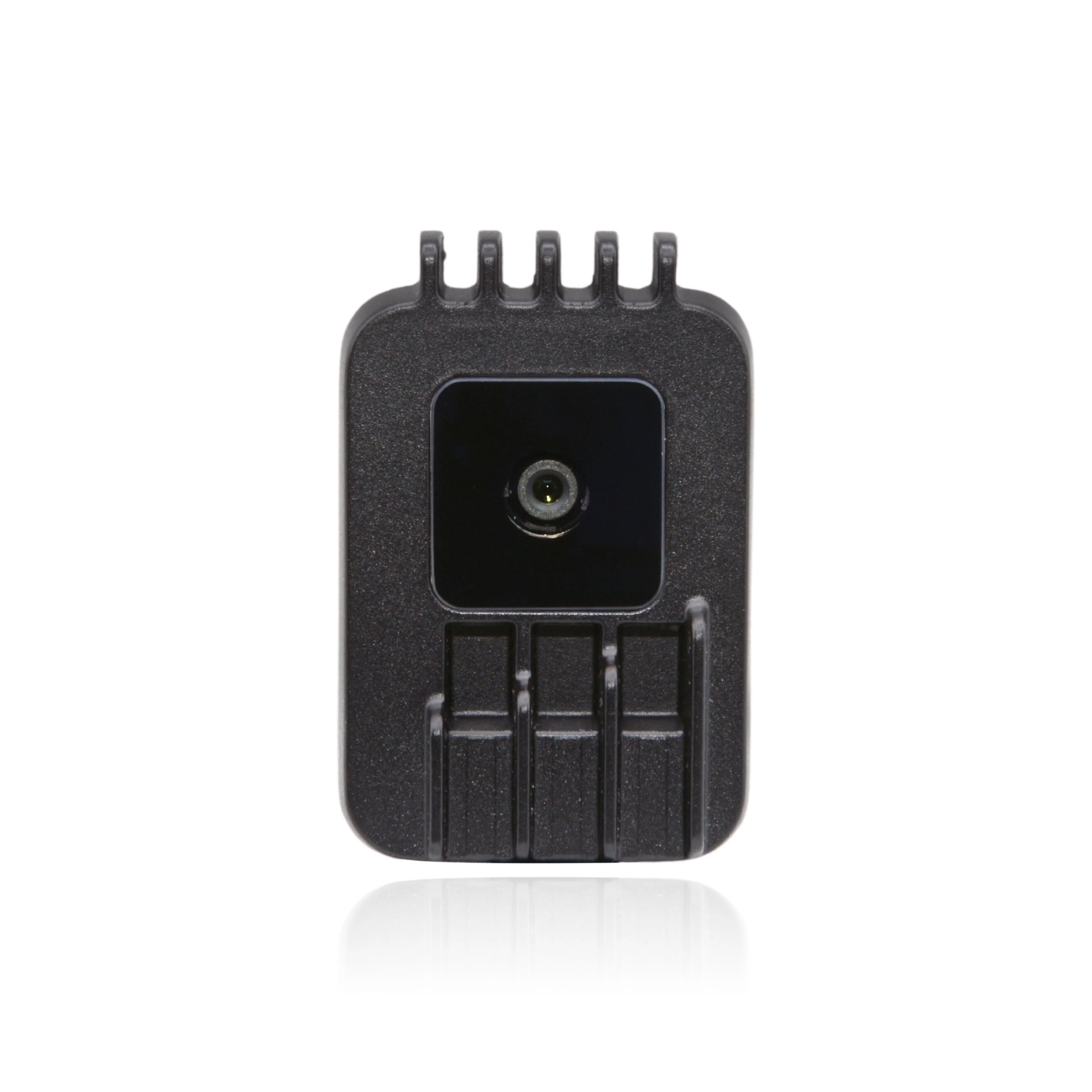

OAK-1 fixed-focus AI camera with Intel Movidius Myriad X delivering 4 TOPS on-device. The fixed-focus 97° lens is optimized for wide-field stationary installations where auto-focus mechanics add cost and complexity. USB3 powered with full DepthAI model support for object detection and classification.
Key Features
- Fixed-focus 97° wide-angle lens
- Intel Movidius Myriad X — 4 TOPS VPU
- USB3 bus-powered
- DepthAI compatible
- No moving parts — better for vibrating environments
Ideal For
Developers deploying fixed-scene computer vision at industrial stations, conveyor lines, or retail checkout points where the camera-to-subject distance is constant.
Feature 1
4 TOPS of processing power (1.4 TOPS for AI)
Dimensions
36x54.5x27.8 mm; Weight: 53.1g
Feature 3
USB2 / USB3 for power delivery and communication
Variant
Auto Focus
Sensor
IMX378 (PY004)
DFOV / HFOV / VFOV
78° / 66° / 54°
Resolution
up to 12MP (4056x3040)
Focus
AF: 8cm - ∞
Max Framerate
up to 60 FPS
Spectral Range
Visible
Shutter Type
Rolling
Sensor size
1/2.3"
F-number
1.8 ± 5%
Effective Focal Length
4.81mm
Pixel size
1.55µm
$169.00
Prices may vary. Verify on vendor site.
Quick Specs
- Feature 1
- 4 TOPS of processing power (1.4 TOPS for AI)
- Dimensions
- 36x54.5x27.8 mm; Weight: 53.1g
- Feature 3
- USB2 / USB3 for power delivery and communication
- Variant
- Auto Focus
- Sensor
- IMX378 (PY004)
- DFOV / HFOV / VFOV
- 78° / 66° / 54°
Tags
computer-visionedge-inference
