Overview

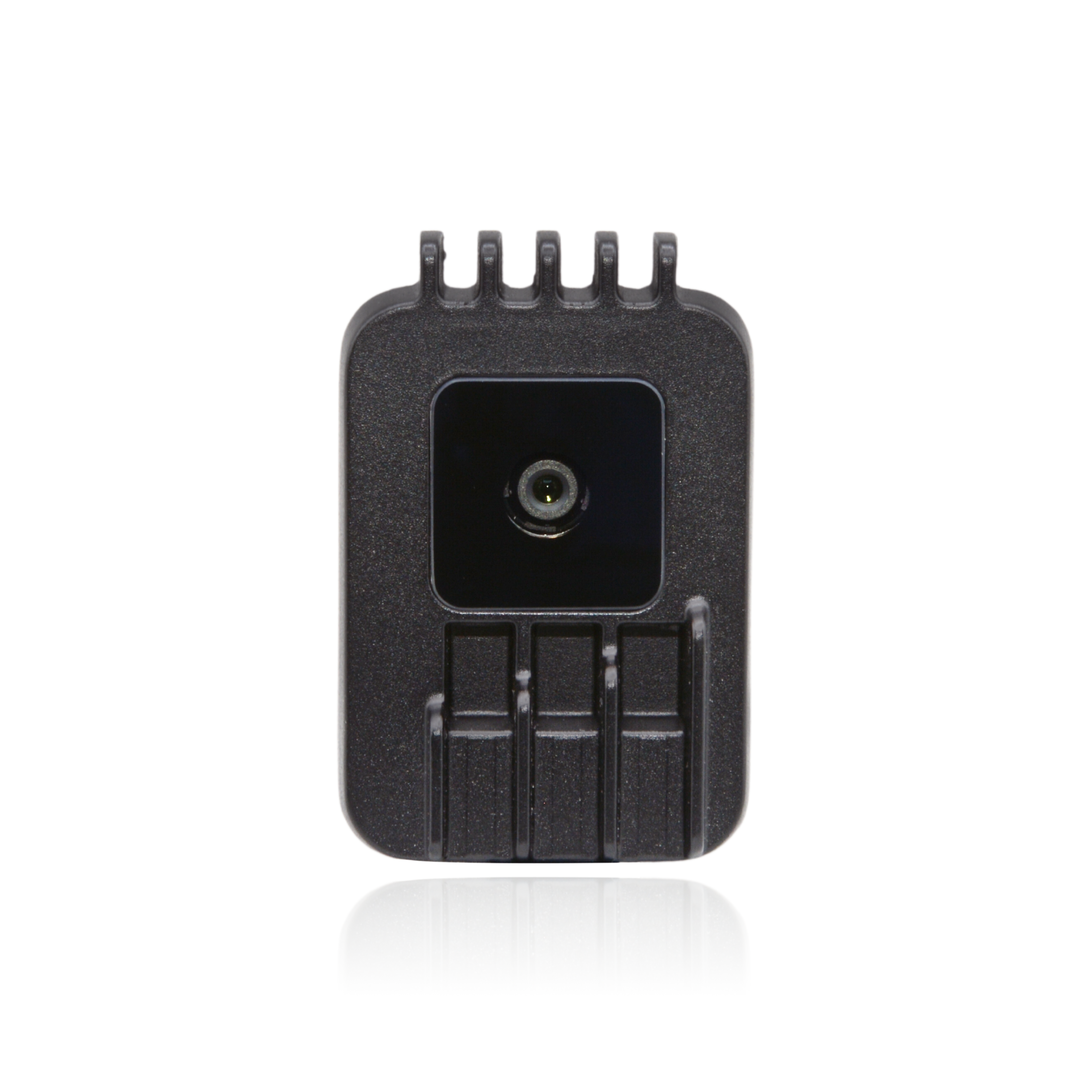

Entry-level OAK-1 Lite camera combining a 13MP IMX214 sensor with Intel Movidius Myriad X VPU for 4 TOPS on-device AI inference. Smaller and lighter than the full OAK-1, with fixed-focus lens for stationary deployments. USB3 powered with full DepthAI model compatibility.
Key Features
- 13MP IMX214 fixed-focus sensor
- Intel Movidius Myriad X — 4 TOPS on-device
- Smaller, lighter form factor than OAK-1
- USB3 bus-powered — no external power needed
- DepthAI SDK compatible
Ideal For
Makers, startups, and developers needing an affordable entry point to on-device AI camera inference for fixed-position applications like retail analytics or security monitoring.
Feature 1
13 Mpix RGB camera available in auto-focus and fixed-focus variants
Feature 2
4 TOPS of processing power (1.4 TOPS for AI)
Dimensions
36x54.5x27.8 mm; Weight: 53.1g
Feature 4
USB2 / USB3 for power delivery and communication
Variant
Auto Focus
Sensor
IMX214 (PY047)
DFOV / HFOV / VFOV
81° / 69° / 54°
Resolution
up to 13MP (4208x3120)
Focus
AF: 8cm - ∞
Max Framerate
up to 35 FPS
Spectral Range
Visible
Shutter Type
Rolling
Sensor size
1/3.1"
F-number
2.2 ± 5%
Effective Focal Length
3.37mm
Pixel size
1.12µm
$119.00
Prices may vary. Verify on vendor site.
Quick Specs
- Feature 1
- 13 Mpix RGB camera available in auto-focus and fixed-focus variants
- Feature 2
- 4 TOPS of processing power (1.4 TOPS for AI)
- Dimensions
- 36x54.5x27.8 mm; Weight: 53.1g
- Feature 4
- USB2 / USB3 for power delivery and communication
- Variant
- Auto Focus
- Sensor
- IMX214 (PY047)
