Overview

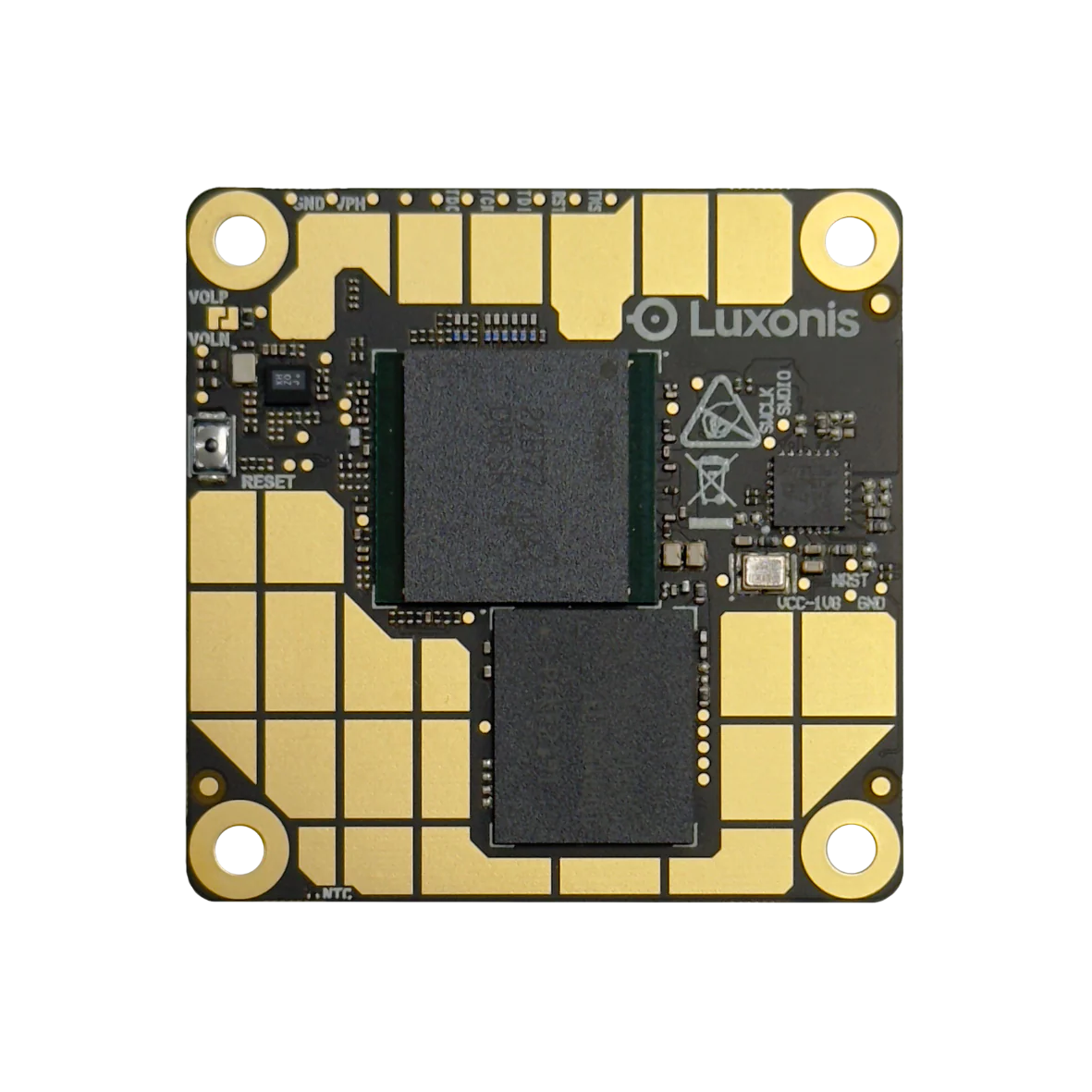

Luxonis OAK 4 SoM — system-on-module for OEM integration with on-device neural inference at 52 TOPS. Inference runs on the module itself, so the host receives results rather than raw video.
Key Features
- Interfaces with the system through three 10-gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
- Connectors: 3x 100-pin mezzanine connector
- MIPI CSI: 5x 4-lane MIPI buses. Max 5 concurrent streams.
- Storage: 128GB
- Multiple GPIOs, I2C/I3C, SPI, UART interfaces
Ideal For
OEMs and product teams embedding on-device vision into their own hardware.
Feature 1
Interfaces with the system through three 10-gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
Connectors
3x 100-pin mezzanine connector
MIPI CSI
5x 4-lane MIPI buses. Max 5 concurrent streams.
RAM
8GB
Storage
128GB
Feature 6
Multiple GPIOs, I2C/I3C, SPI, UART interfaces
Feature 7
Supporting SD-card
Feature 8
2x PCIe (eg. for Ethernet chip)
Feature 9
FSYNC/STROBE outputs (from STM MCU)
Display
MIPI DSI interface
Feature 11
USB 3.2 Gen 2x1 (10Gbps)
Feature 12
Remote monitoring
Feature 13
Live streaming
Feature 14
Easy app deployment
Feature 15
Plug & Play setup
Feature 16
App store
$549.00
Prices may vary. Verify on vendor site.
Quick Specs
- Feature 1
- Interfaces with the system through three 10-gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
- Connectors
- 3x 100-pin mezzanine connector
- MIPI CSI
- 5x 4-lane MIPI buses. Max 5 concurrent streams.
- RAM
- 8GB
- Storage
- 128GB
- Feature 6
- Multiple GPIOs, I2C/I3C, SPI, UART interfaces
