Overview

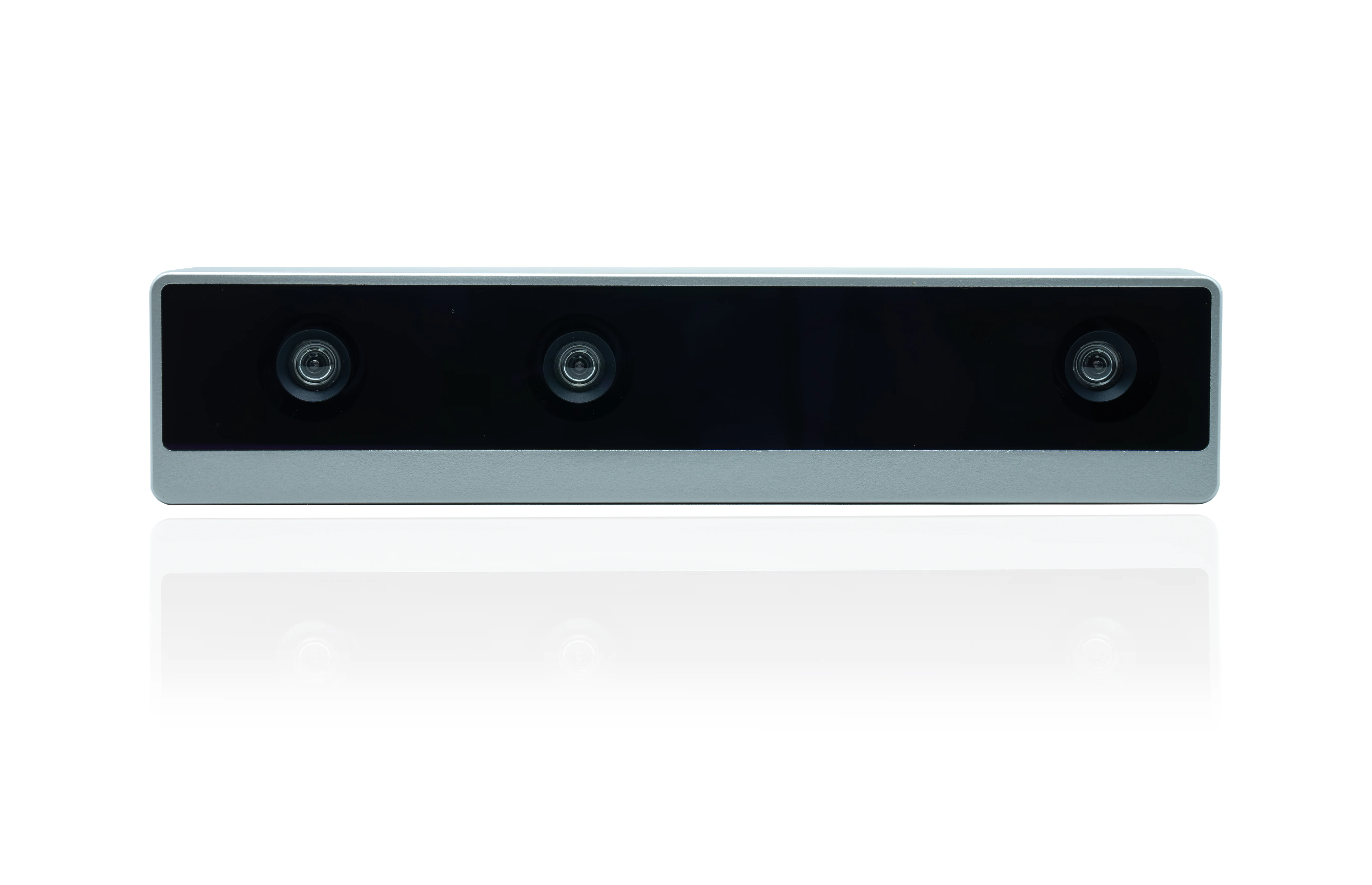

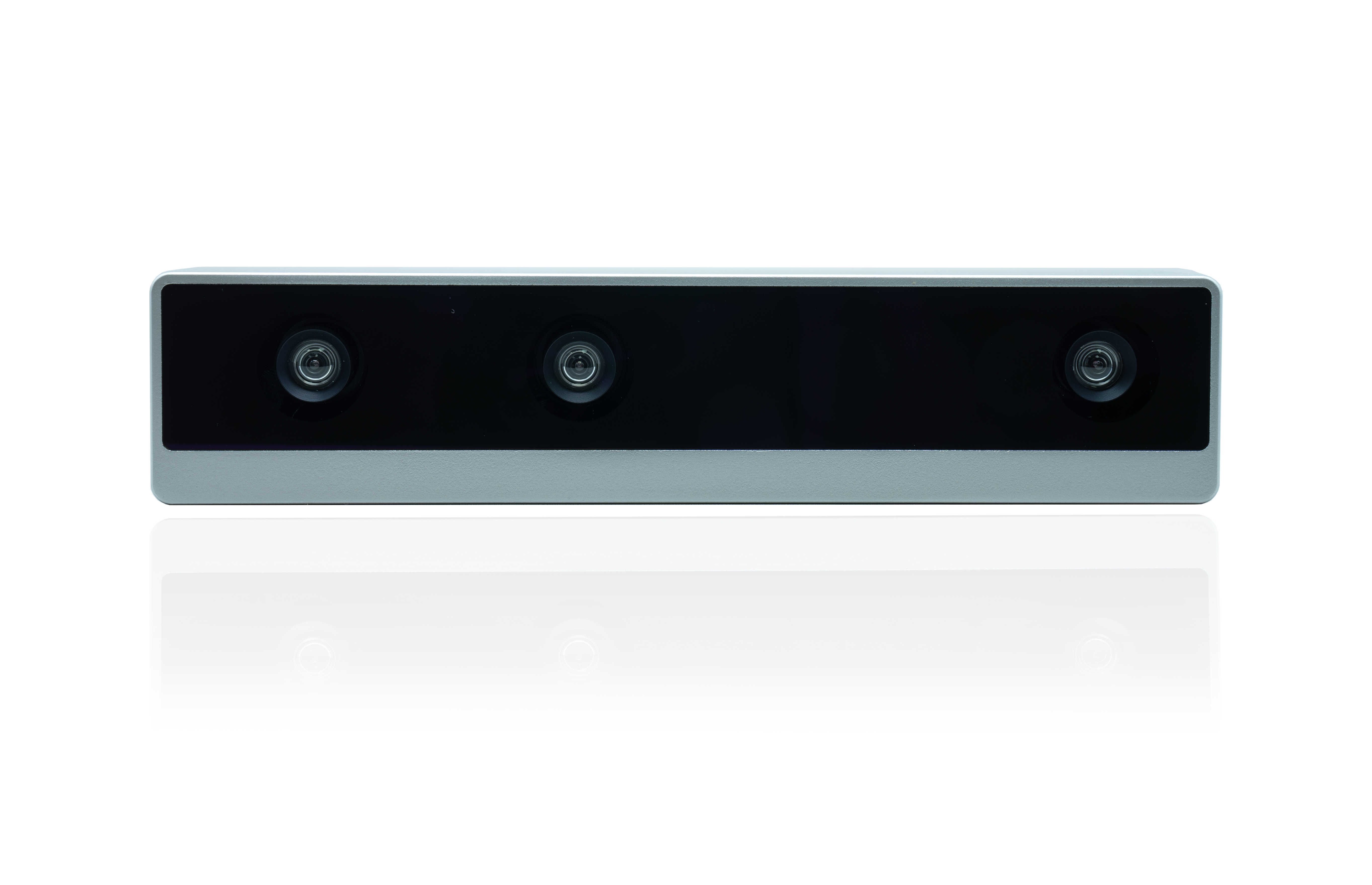

OAK-D Long Range AI camera with 15cm stereo baseline enabling accurate depth estimation up to 30 meters. Intel Movidius Myriad X provides 4 TOPS for on-device detection and depth fusion. Designed for warehouse robotics, outdoor navigation, and logistics sorting where standard short-baseline cameras lose depth accuracy at distance.
Key Features
- 15cm stereo baseline — accurate depth to 30 meters
- Intel Movidius Myriad X — 4 TOPS VPU
- RGB + stereo pair for depth + color fusion
- USB3 powered
- DepthAI SDK for custom pipeline development
Ideal For
Feature 1
Three stereo baselines 5cm, 10cm, and 15cm for short to long range depth sensing
Feature 2
Triple AR0234 2.3 Mpix global shutter color sensors, swappable M12-mount lenses
Feature 3
4 TOPS of processing power (1.4 TOPS for AI)
Feature 4
USB 3.1 and RJ45 connector supporting 802.af PoE
Sensor
AR0234 (PY078)
DFOV / HFOV / VFOV
100° / 82° / 56°
Resolution
up to 2MP (1920x1200)
Focus
FF: 45cm - ∞
Max Framerate
up to 60 FPS
Spectral Range
Visible
Shutter Type
Global
Sensor size
1/2.6"
F-number
2.8 ± 5%
Effective Focal Length
3.6mm
Pixel size
3µm
HFOV [°]
< 2% depth error
10
54.9 m
20
27.2 m
30
17.9 m
40
13.2 m
50
10.3 m
60
8.3 m
70
6.9 m
80
5.7 m
82
5.5 m
90
4.8 m
100
4.0 m
Prices may vary. Verify on vendor site.
Quick Specs
- 10
- 54.9 m
- 20
- 27.2 m
- 30
- 17.9 m
- 40
- 13.2 m
- 50
- 10.3 m
- 60
- 8.3 m
