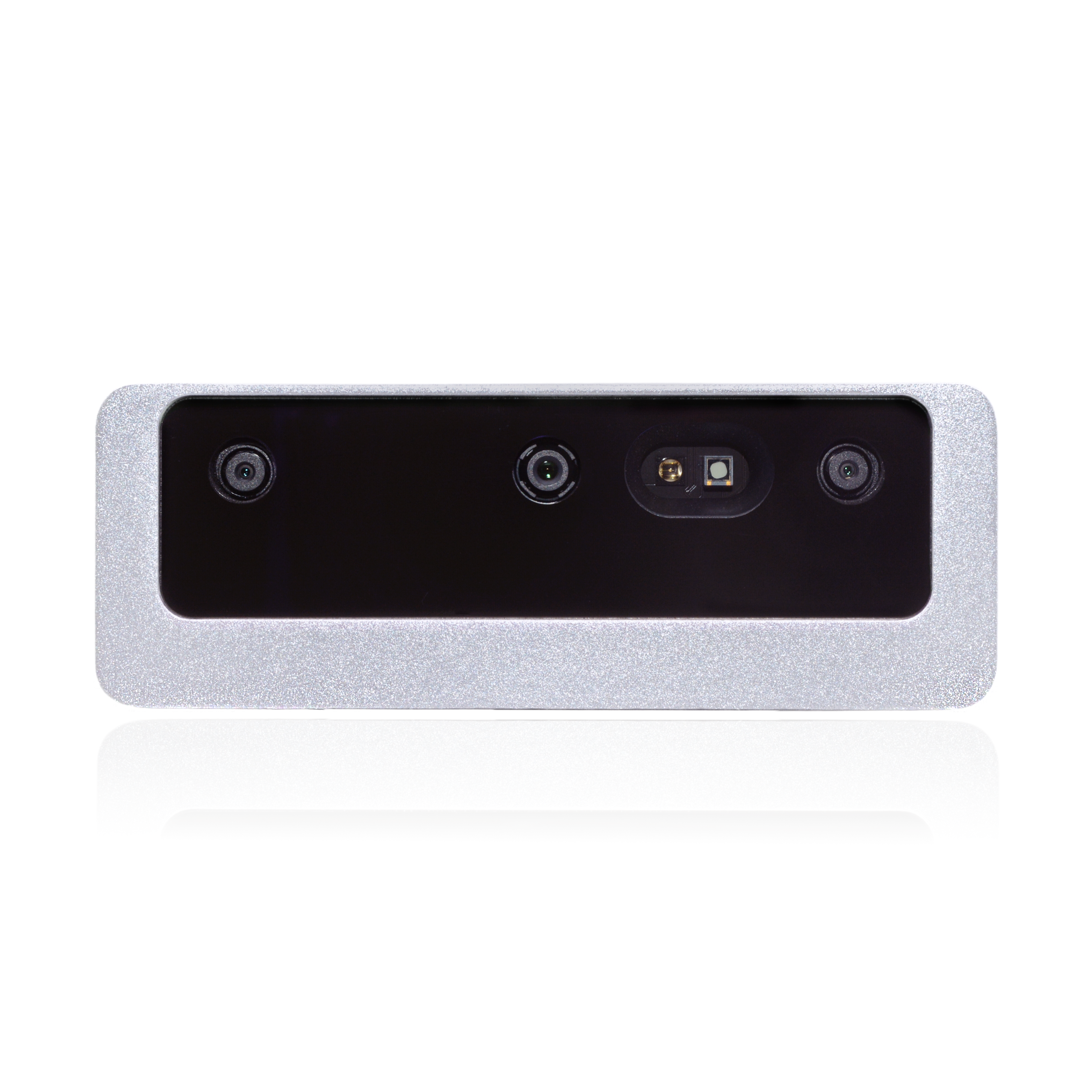

Active stereo
IR dot projector improves depth perception, especially for low-visual-interest surfaces by projecting thousands of IR dots to the scene.
Night vision
IR illumination LED enables running your AI and CV algorithms in low-light or no-light environments
Feature 3
Rugged IP65 rated enclosure
Feature 4
M12 PoE connector and additionally M8 connector for IO connectivity
Variant
Auto Focus
Sensor
IMX378 (PY004)
DFOV / HFOV / VFOV
78° / 66° / 54°
Resolution
up to 12MP (4056x3040)
Focus
AF: 8cm - ∞
Max Framerate
up to 60 FPS
Spectral Range
Visible
Shutter Type
Rolling
Sensor size
1/2.3"
F-number
1.8 ± 5%
Effective Focal Length
4.81mm
Pixel size
1.55µm
$579.00
Prices may vary. Verify on vendor site.
Quick Specs
- Active stereo
- IR dot projector improves depth perception, especially for low-visual-interest surfaces by projecting thousands of IR dots to the scene.
- Night vision
- IR illumination LED enables running your AI and CV algorithms in low-light or no-light environments
- Feature 3
- Rugged IP65 rated enclosure
- Feature 4
- M12 PoE connector and additionally M8 connector for IO connectivity
- Variant
- Auto Focus
- Sensor
- IMX378 (PY004)
