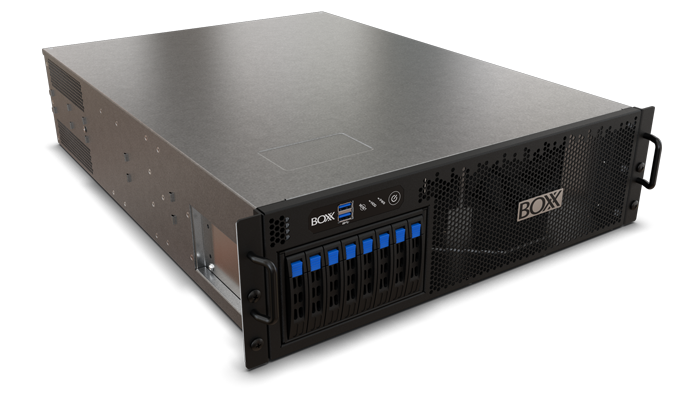

RAXX T3Pro

Chipset

AMD WRX90

Socket

Single (sTRX5)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

AMD Threadripper Pro

Core Frequency (GHz)

2.5 Base clock / 5.1 Boost clock

Cores/Threads

96/192

Multi-Threading

Yes

Max Configurable Memory

2TB DDR5-6400MHz

DIMM Slots

8

PCIe Slots

x16, x16, x16, x16, x16, x16(8), x16

Supported GPU Configurations

Up to 4 GPUs at x16

2.5" Drive(s)

8 (Up to 8TB each)

3.5" Drive(s)

N/A

Shipping Dimensions

24" (60.96cm) W15" (38.10cm) H33" (83.82cm) D

Shipping Weight

60 lbs.

M.2 Drive(s)

4 (Up to 4TB each)

U.2 Support

Yes

RAID Support

0, 1, 5

OCuLink Support

No

Onboard Wi-Fi

N/A

Onboard Bluetooth

N/A

Power Supply

2000-watt x 2 (80 PLUS Titanium)

GPU Power Budget (W)

1000

Product Dimensions

17.3" (43.94cm) W5.22" (13.25cm) H24.0" (60.96cm) D

Front I/O

2 x USB 3.2 Gen 1

Rear I/O

• • 2 x USB 4.0 (Type-C)
• • 6 x USB 3.2 Gen 1 (Type-A)
• • 1 x USB 2.
• • 0
• • 2 x 10GbE LAN (RJ-45)
• • 1 x 1 GbE LAN (RJ-45) IPMI
• • 1 x VGA BMC Port
• • 2 x Audio Jacks

Optical Drive Option

DVD±RW or Blu-Ray RW (5.25")

Rackmount Option

Yes

Notes

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.GPU power budgets are conservative estimates.Shipping weights vary by configuration.
