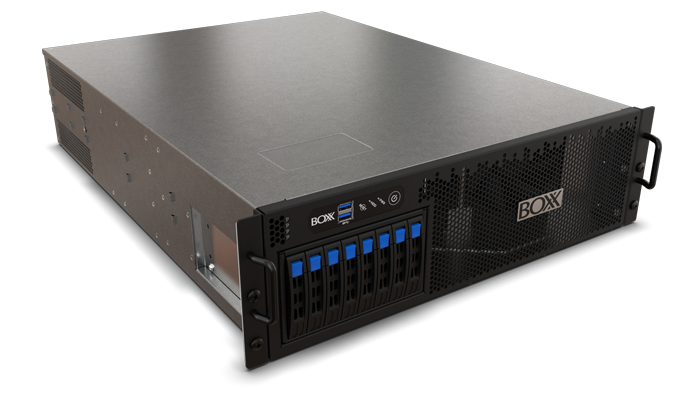

RAXX W3

Chipset

Intel W790

Socket

Single (4677)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

Intel Xeon W

Core Frequency (GHz)

2.0 Base clock / 4.8 Boost clock

Cores/Threads

60/120

Multi-Threading

Yes

Max Configurable Memory

1TB DDR5-4800MHz

DIMM Slots

8

PCIe Slots

x16, x16, x16, x16,x16, x16(x8), x16

Supported GPU Configurations

Up to 4 GPUs at x16

2.5" Drive(s)

10 (Up to 8TB each)

3.5" Drive(s)

N/A

Shipping Dimensions

24" (60.96cm) W15" (38.10cm) H33" (83.82cm) D

Shipping Weight

60 Lbs

M.2 Drive(s)

2 (Up to 4TB each)

U.2 Support

Yes

RAID Support

0, 1, 5

OCuLink Support

No

Max 2.5"/3.5" Configurations

• • 2 x 3.5" | or |
• • 1 x 3.5" +
• • 2 x 2.5" | or |
• • 4 x 2.5"

Power Supply

2000-watt x 2 (80 PLUS Titanium)

Power Supply Input

100-240 Volt Input

GPU Power Budget (W)

1400

Product Dimensions

17.3" (43.94cm) W5.22" (13.25cm) H24.0" (60.96cm) D

Front I/O

2 x USB 3.2 Gen 1

Rear I/O

• • 2 x 10GbE LAN (RJ-45)
• • 4 x USB 3.2 Gen 2 (Type-A)
• • 1 x USB 3.2 Gen 2 (Type-C)
• • 1 x Optical S/PDIF out7.1-Channel Audio
• • 4 x USB 3.2 Gen 1 (Type-A)
• • 2 x USB 2.0 (Type-A)

Optical Drive Option

DVD±RW or Blu-Ray RW (5.25")

Rackmount Option

No

Notes

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.GPU power budgets are conservative estimates.Shipping weights vary by configuration.
