Overview

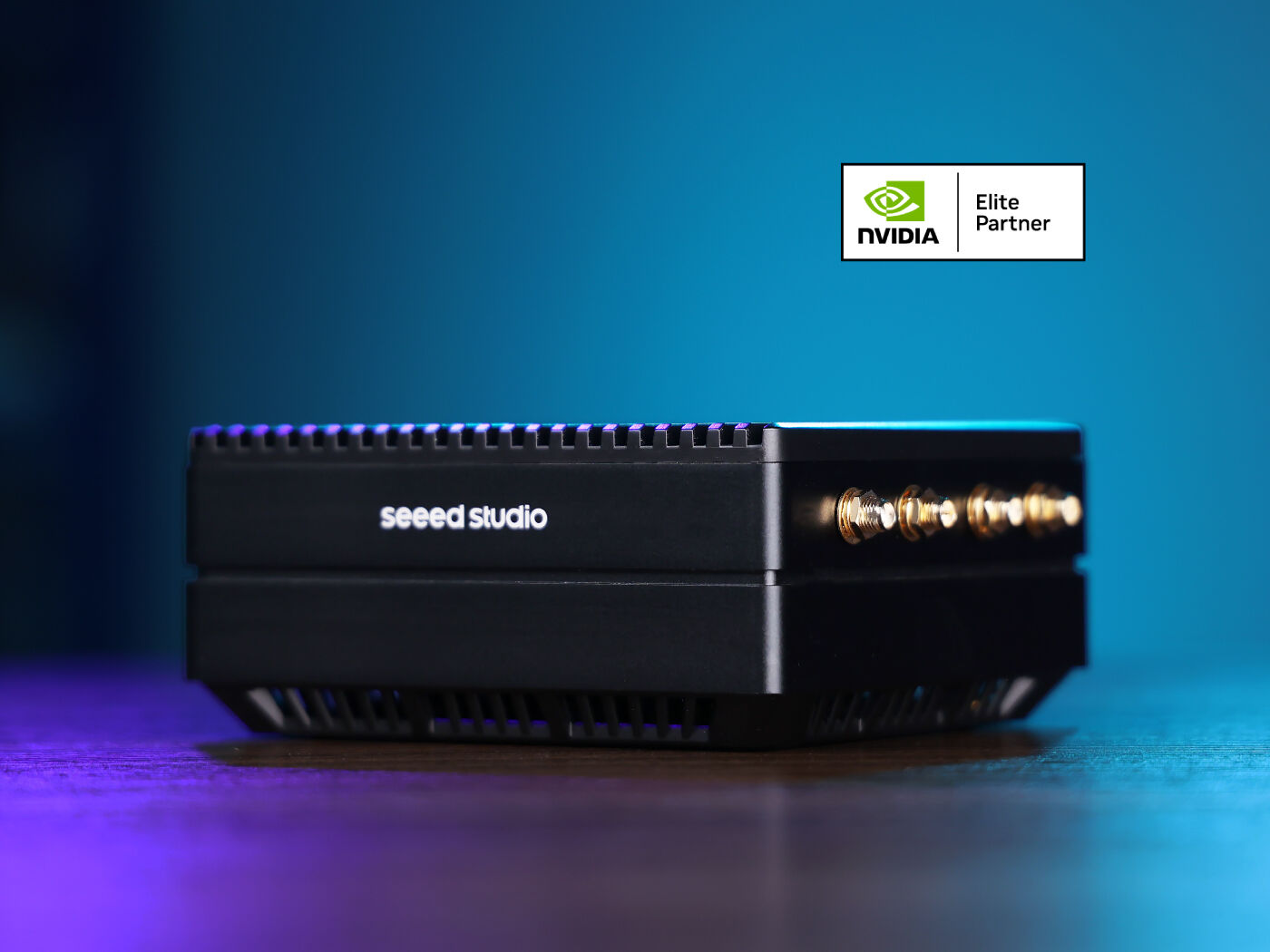

NVIDIA Jetson-based edge AI system for embedded AI and robotics. Includes 8GB unified memory for running local AI models. Ideal for autonomous systems, industrial automation, and smart edge deployments.
Key Features
- Dual ARM Cortex processors
- Up to 8GB DDR5 memory
- Integrated neural processing unit
- Optimized for edge deployment
Ideal For
Parameter
Description
Product Series
reComputer J3010B
Module
Jetson Orin Nano 4GB
AI performance
20 TOPS 34 TOPS under super mode
GPU
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
GPU Max Frequency
625 MHz
CPU
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
CPU Max Frequency
1.5 GHz
Memory
4GB 64-bit LPDDR5 34 GB/s
Storage
pre-installed 128GB NVMe SSD
Video Encoder
1080p30 supported by 1-2 CPU cores
Video Decoder
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
Display
1x HDMI 2.1
CSI
2x CSI （2-lane 15pin）
Networking
1x Gigabit Ethernet (10/100/1000M)
USB
2x USB 3.2 Type-A (10Gbps); 1x USB2.0 Type-C (Device Mode)
M.2 Key M
1x M.2 Key M for SSD
M.2 Key E
1x M.2 Key E for Wi-Fi module*
mini-PCIe
1x mini-PCIe for LTE module*
Fan
1x JST 4pin Fan Connector(5V PWM)
CAN
1x CAN
Multifunctional Port
1x 40-Pin Expansion header; 1x 12-Pin Control and UART header
RTC
RTC 2-pin, RTC socket (supports CR1220*)
Power Supply
DC 9-19V via 5525 DC jack
Certification
CE, FCC, KC,TELEC
Operating Temperature
-10~60 °C
Dimension
130mm x120mm x 58.5mm
Weight
451.9g
Warranty
2 years
Production Lifetime
Until 2032
Statement
Options marked with * require additional purchase
