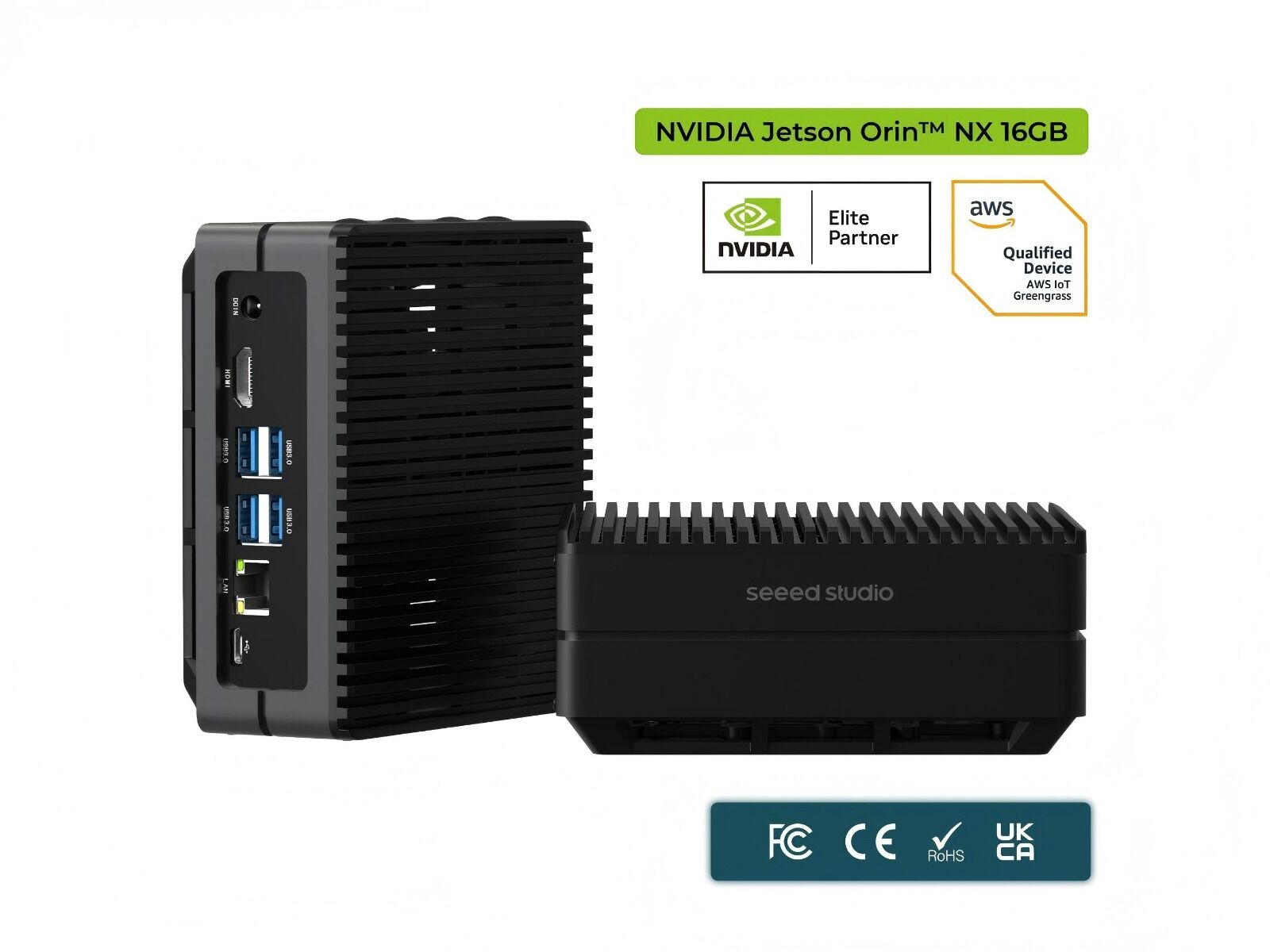

reComputer J4012 - Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB （Super Mode NOT Supported)
Seeed Studio
Overview
NVIDIA Jetson-based edge AI system for embedded AI and robotics. Includes 16GB unified memory for running local AI models. Ideal for autonomous systems, industrial automation, and smart edge deployments.
Key Features
- Dual ARM Cortex processors
- Up to 16GB DDR5 memory
- Integrated neural processing unit
- Optimized for edge deployment
Ideal For
AI Performance
reComputer J4012 - Orin NX 16GB, 100 TOPS reComputer J4011- Orin NX 8GB – 70 TOPS
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB) 6-core Arm® Cortex®-A78AE (Orin NX 8GB)
Memory
16GB 128-bit LPDDR5 (Orin NX 16GB) 8GB 128-bit LPDDR5 (Orin NX 8GB)
Video Encode
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265)
Video Decode
1x 4K60 (H.265) | 3x 4K30 (H.265) | 6x 1080p60 (H.265) | 12x 1080p30 (H.265)
DL Accelerator
2x NVDLA v2
Storage
1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)
Networking
Ethernet
M.2 KEY E
1x M.2 Key E for WiFi/Bluetooth module
I/O
USB
Camera
2x CSI (2-lane 15pin)
Display
1x HDMI 2.1
Fan
1x 4 pin Fan Connector (5V PWM)
CAN
1x CAN
Multifunctional Port
1x 40-Pin Expansion header 1x 12-Pin Control and UART header
RTC
1x RTC 2-pin, supports CR1220 (not included)
Power Supply
9-19V DC
Mechanical
Dimensions (W x D x H)
Installation
Desk, wall-mounting
Operating Temperature
-10℃~60℃
Warranty
1 Year
Feature
If you are looking for the version without power adapter, please check out reComputer J4012 without power adapter
Feature
For optimal performance with reComputer, we recommend using 128GB / 256GB / 512GB / 1TB SSDs from Seeed. Since some SSDs on the market may only be compatible with specific JetPack versions which may cause the device to fail to function properly, and this issue is also present with official NVIDIA dev kits.
Brilliant AI Performance for Production
Achieves up to 100 TOPS AI performance with low power and latency, built by NVIDIA Orin SoC combining the NVIDIA Ampere™ GPU architecture with 64-bit operating capability, integrated advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.
Hand-Size Edge AI Device
Compact size at 130mm x120mm x 58.5mm, featuring an NVIDIA Jetson Orin NX 16GB module, J401 carrier board, fan, enclosure, and power adapter. Support desktop and wall mounting.
Expandable with Rich I/Os
Includes 4x USB 3.2, HDMI 2.1, 2x CSI, 1x RJ45 for GbE, M.2 Key E, M.2 Key M, CAN, and GPIO.
Accelerate Solutions to Market
Pre-installed JetPack 5.1.1 on 128GB NVMe SSD, Linux OS BSP, supporting Jetson software and leading AI frameworks.
Scale to deploy
support OTA, remote management services powered by Allxon and Balena.
Flexible Customization
inlcudes changing accessories modules, logo, and hardware interfaces modification based on reComputer J4012 original design.
Feature
Jetson Orin NX System on Module
Feature
Carrier Board
Feature
reComputer J401 carrier board, included in the full system - reComputer J4012
Feature
Desktop, wall Mount, expandable, or fit in anywhere
Feature
Capable of Bringing Generatie AI to the Edge
Feature
Build Multi-streams AI Video Analytics
Feature
Fastest Way to Deploy Generative AI and Computer Vision Models
