Super Server112B-WR
Servers

Super Server112B-WR

Silicon Mechanics

Overview

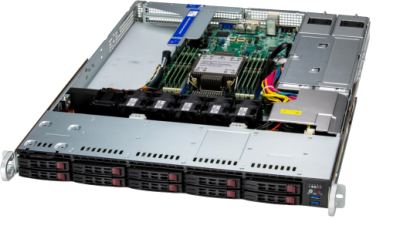

1U Supermicro WIO SuperServer with Intel Xeon 6 Efficient-core processors (up to 96 cores at 250W) and optional dual NVIDIA L4 Ada 24GB GDDR6X GPUs for inference workloads. Supports up to 512GB DDR5 ECC RDIMM and 10x 2.5" hot-swap drives, with 860W 1+1 redundant PSU in a dense 1U footprint.

Key Features

  • Intel Xeon 6710E/6731E/6740E with up to 96 Efficient cores at 250W TDP
  • Up to 2x NVIDIA L4 Ada 24GB GDDR6X or RTX 2000 Ada 16GB GPUs
  • Up to 512GB DDR5-6400 ECC RDIMM (8 DIMM slots)
  • 10x 2.5" NVMe/SATA/SAS hot-swap bays + 2x M.2
  • 860W 1+1 redundant PSU; IPMI out-of-band management

Ideal For

Enterprise teams deploying LLM inference and computer vision in rack-dense environments requiring 1U form factor with dual Ada-generation GPU acceleration.

Barebone

  • • Supermicro WIO SuperServer 112B-WR - 1U - 10x 2.5" NVMe/SATA/SAS Hot-swap - Dual 1GbE - 860W 1+1 Redundant

Processor

  • • Intel® Xeon® 6710E Processor: 64 Cores, 2.4GHz / 3.2GHz, 96MB Cache, 5600 MT/s, 205W TDP
  • • Intel® Xeon® 6731E Processor: 96 Cores, 2.2GHz / 3.1GHz, 96MB Cache, 5600 MT/s, 250W TDP
  • • Intel® Xeon® 6740E Processor: 96 Cores, 2.4GHz / 3.2GHz, 96MB Cache, 6400 MT/s, 250W TDP
  • • Intel® Xeon® 6746E Processor: 112 Cores, 2.0GHz / 2.7GHz, 96MB Cache, 5600 MT/s, 250W TDP
  • • Intel® Xeon® 6756E Processor: 128 Cores, 1.8GHz / 2.6GHz, 96MB Cache, 6400 MT/s, 225W TDP
  • • Intel® Xeon® 6766E Processor: 144 Cores, 1.9GHz / 2.7GHz, 108MB Cache, 6400 MT/s, 250W TDP
  • • Intel® Xeon® 6505P Processor: 12 Cores, 2.2GHz / 4.1GHz, 48MB Cache, 6400 MT/s, 150W TDP
  • • Intel® Xeon® 6515P Processor: 16 Cores, 2.3GHz / 3.8GHz, 72MB Cache, 6400 MT/s, 150W TDP
  • • Intel® Xeon® 6520P Processor: 24 Cores, 2.4GHz / 4.0GHz, 144MB Cache, 6400 MT/s, 210W TDP
  • • Intel® Xeon® 6530P Processor: 32 Cores, 2.3GHz / 4.1GHz, 144MB Cache, 6400 MT/s, 225W TDP
  • • Intel® Xeon® 6740P Processor: 48 Cores, 2.1GHz / 3.8GHz, 288MB Cache, 6400 MT/s, 270W TDP
  • • Intel® Xeon® 6714P Processor: 8 Cores, 4.0GHz / 4.3GHz, 48MB Cache, 6400 MT/s, 165W TDP
  • • Intel® Xeon® 6724P Processor: 16 Cores, 3.6GHz / 4.3GHz, 72MB Cache, 6400 MT/s, 210W TDP
  • • Intel® Xeon® 6725P Processor: 16 Cores, 3.7GHz / 4.8GHz, 192MB Cache, 6400 MT/s, 235W TDP
  • • Intel® Xeon® 6728P Processor: 24 Cores, 2.7GHz / 4.1GHz, 144MB Cache, 6400 MT/s, 210W TDP
  • • Intel® Xeon® 6738P Processor: 32 Cores, 2.9GHz / 4.2GHz, 144MB Cache, 6400 MT/s, 270W TDP
  • • Intel® Xeon® 6748P Processor: 48 Cores, 2.5GHz / 4.1GHz, 192MB Cache, 6400 MT/s, 300W TDP
  • • Intel® Xeon® 6507P Processor: 8 Cores, 3.5GHz / 4.3GHz, 48MB Cache, 6400 MT/s, 150W TDP
  • • Intel® Xeon® 6517P Processor: 16 Cores, 3.2GHz / 4.2GHz, 72MB Cache, 6400 MT/s, 190W TDP
  • • Intel® Xeon® 6527P Processor: 24 Cores, 3.0GHz / 4.2GHz, 144MB Cache, 6400 MT/s, 255W TDP
  • • Intel® Xeon® 6730P Processor: 32 Cores, 2.5GHz / 3.8GHz, 288MB Cache, 6400 MT/s, 250W TDP
  • • Intel® Xeon® 6736P Processor: 36 Cores, 2.0GHz / 4.1GHz, 144MB Cache, 6400 MT/s, 205W TDP
  • • Intel® Xeon® 6737P Processor: 32 Cores, 2.9GHz / 4.0GHz, 144MB Cache, 6400 MT/s, 270W TDP
  • • Intel® Xeon® 6745P Processor: 32 Cores, 3.1GHz / 4.3GHz, 336MB Cache, 6400 MT/s, 300W TDP

Processor Heatsink

  • • Supermicro SNK-P0087V - 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform

Memory

  • • 16GB PC5-51200 6400MHz DDR5 ECC RDIMM
  • • 32GB PC5-51200 6400MHz DDR5 ECC RDIMM
  • • 64GB PC5-51200 6400MHz DDR5 ECC RDIMM
  • • 128GB PC5-51200 6400MHz DDR5 ECC RDIMM

Accessories

  • • Supermicro FAN-0163L4 - 40x40x56 mm 23K-20.5K RPM Counter-rotating Fan

Operating System

  • • No Windows Operating System
  • • Microsoft Windows Server 2025 Standard (16-core) (DSP)
  • • Microsoft Windows Server 2025 Standard (24-core) (DSP)
  • • Microsoft Windows Server 2025 Datacenter (16-core) (DSP)
  • • Microsoft Windows Server 2025 Datacenter (24-core) (DSP)
  • • CIQ Yearly Premium Support for Rocky Linux, Per Node, On Prem, 1-99 Nodes, 24/7 Web/Email/Slack Assist
  • • CIQ Yearly Standard Support for Rocky Linux, Per Node, On Prem, 1-99 Nodes, 8-6 Web/Email HD
  • • Rocky Linux 8.x (64-bit)
  • • Rocky Linux 9.x (64-bit)
  • • Debian Linux 12 (64-bit)
  • • Fedora Linux 40 Server Edition (64-bit)
  • • openSUSE Leap Linux 15.x (64-bit)
  • • Ubuntu Linux 22.04 LTS Server Edition (64-bit)
  • • Ubuntu Linux 24.04 LTS Server Edition (64-bit)
  • • Red Hat® Enterprise Linux® 8 Server (Self Support) (1 Year)
  • • Red Hat® Enterprise Linux® 8 Server (Standard) (1 Year)
  • • Red Hat® Enterprise Linux® 8 Server (Premium) (1 Year)
  • • Red Hat® Enterprise Linux® 9 Server (Self Support) (1 Year)
  • • Red Hat® Enterprise Linux® 9 Server (Standard) (1 Year)
  • • Red Hat® Enterprise Linux® 9 Server (Premium) (1 Year)

Assembly and Testing

  • • System Assembly and Testing (Rackmount and Storage) (SYSBLD3)

Warranty

  • • 3 Year Depot Warranty (Return for Repair)
  • • 3 Year Advanced Parts Replacement Warranty (Zone 0)
  • • 3 Year Advanced Parts Replacement Warranty (International) (Zone 01)
  • • 3 Year Advanced Parts Replacement Warranty (International) (Zone 02)
  • • 3 Year Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0)
  • • 3 Year Advanced Parts Replacement Warranty and Onsite Service (International) (Zone 01)
  • • 3 Year Advanced Parts Replacement Warranty and Onsite Service (International) (Zone 02)
  • • 4 Year Advanced Parts Replacement Warranty (Zone 0)
  • • 4 Year Advanced Parts Replacement Warranty (International) (Zone 01)
  • • 4 Year Advanced Parts Replacement Warranty (International) (Zone 02)
  • • 4 Year Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0)
  • • 4 Year Advanced Parts Replacement Warranty and Onsite Service (International) (Zone 01)
  • • 4 Year Advanced Parts Replacement Warranty and Onsite Service (International) (Zone 02)
  • • 5 Year Advanced Parts Replacement Warranty (Zone 0)
  • • 5 Year Advanced Parts Replacement Warranty (International) (Zone 01)
  • • 5 Year Advanced Parts Replacement Warranty (International) (Zone 02)
  • • 5 Year Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0)
  • • 5 Year Advanced Parts Replacement Warranty and Onsite Service (International) (Zone 01)
  • • 5 Year Advanced Parts Replacement Warranty and Onsite Service (International) (Zone 02)
$12,884.00

Prices may vary. Verify on vendor site.

View on Silicon Mechanics →

Quick Specs

Barebone
Supermicro WIO SuperServer 112B-WR - 1U - 10x 2.5" NVMe/SATA/SAS Hot-swap - Dual 1GbE - 860W 1+1 Redundant
Processor
Intel® Xeon® 6710E Processor: 64 Cores, 2.4GHz / 3.2GHz, 96MB Cache, 5600 MT/s, 205W TDP
Processor Heatsink
Supermicro SNK-P0087V - 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform
Memory
16GB PC5-51200 6400MHz DDR5 ECC RDIMM
Accessories
Supermicro FAN-0163L4 - 40x40x56 mm 23K-20.5K RPM Counter-rotating Fan
Operating System
No Windows Operating System

Tags

llm-inferencedata-analyticscomputer-vision
