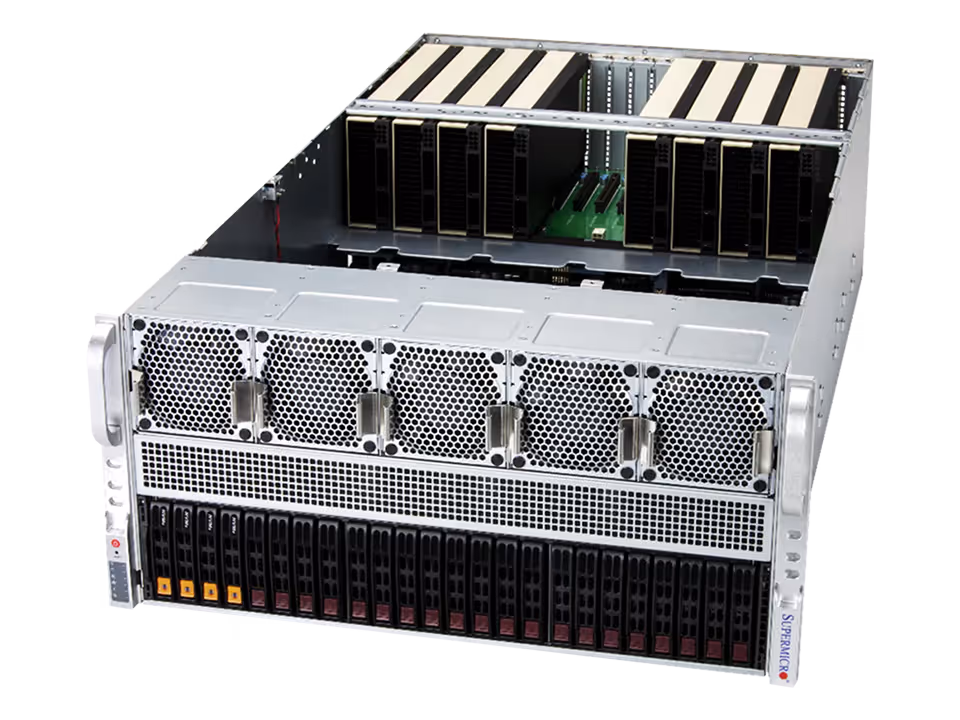

Supermicro: NVIDIA RTX PRO 6000 Server Edition GPU Server

Model

• • SYS-522GA-NRT
• • AS -5126GS-TNRT

Form Factor

5U rack server

Processor

• • 2x Intel Xeon 6900 series processors with P-cores Up to 128C/256T; Up to 504MB Cache per CPU
• • 2x AMD EPYC 9005/9004 Series Processors Up to 192C/384T

GPU

• • Max GPU Count: Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
• • NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
• • CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root
• • GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional)

Memory

• • Slot Count: 24 DIMM slots
• • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
• • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

Storage

• • Slot Count: 24 DIMM slots
• • Standard 8x SSD 2.5" NVMe PCIe4 3.8TB 1DWPD TLC D, 15mm

Cooling

Air cooled

Fans

• • Fans: 10 heavy duty fans with optimal fan speed control
• • Air Shroud: 1 Air Shroud

Power Supply

6x 2700W Redundant Titanium Level (96%) power supplies

Dimensions

• • Weight: Gross Weight: 100 lbs (45.3 kg)
• • Net Weight: 65.5 lbs (29.7 kg)
• • Available Color: Black Front & Silver Body

Warranty & Support

• • 3-Year Standard RMA Warranty & Support
• • Add On: 3-Year Next-Business-Day Onsite Warranty & Support
